Delta Butt Fusion Welder
RITMO DELTA’s precision-engineered butt welding machines represent the pinnacle of pipe fusion technology. The comprehensive range delivers unmatched performance for every application, from utilities to major infrastructure projects.
These machines are manually operated and often setup with an external datalogger or QA system which we can supply or tie in with the use of the PE Weld Bank system we also provide to the market.
This page covers some of the standard models we provide in NZ. With sizes 63mm up to 355mm we only stock the Easylife Automatic range of Butt Welders in NZ which is based on customer feedback and industry demands with councils and engineers.
Setting the Standard in
Butt Fusion Technology
RITMO SMARTLocK
“As simple as pushing a button”, this is how to describe RITMO’S SMARTLocK system for inserts.
No tools are required to place our butt welder’s inserts, just push a button to lock and unlock them.
Simple and time saving.
RITMO SMARTLocK system is designed for ease of use and efficiency.
With SMARTLocK, installing and removing the inserts is effortless and no tools are needed! Just a gentle press on the locking button, and you’re ready. This is a true time-saver!
Another advantage? RITMO’s uses thin inserts that easily grip also short-elbows and different types of fittings making the installations a breeze.
SMARTLocK is compatible with models from 250 to 355mm.
SMARTLocK is a RITMO patent …when a detail makes all the difference!
Advanced Features Across All Models:
- ISO 9001 certified manufacturing
- CE compliance
- Digital temperature control (±1°C accuracy)
- Precision pressure monitoring
- Quality assurance tracking
- Protection class: IP54 minimum
- Data logging capabilities
- Environmental protection features
- Quick-change heating plates
- Self-diagnostic systems
DELTA BASIC/PROFESSIONAL SERIES (63mm – 355mm)
The perfect entry point for professional pipe welding
- Compact and portable design
- Lightweight aluminum construction
- Manual pump system with precise pressure control
- Digital temperature controller (180°C – 280°C)
- Quick-change heating plate
- High-precision facing tool
- Quick-lock clamp system
- Reducer insert sets available
- IP54 protection class
- Sturdy transport case included
- Multiple material compatibility:
- PE, PP, PB
- PVDF
- Special materials on request
DELTA MAXIMUM Series (500mm-1600mm)
Engineered for major infrastructure projects.
- Comprehensive size ranges starting at the DELTA 500mm up to DELTA 1600mm machines.
- Full electronic control system
- Advanced hydraulic operation
- Self-leveling system
- High-capacity heating element
- Enhanced safety features:
- Emergency stop system
- Pressure loss protection
- Temperature monitoring
- Overload protection
- Heavy-duty construction
- All-terrain mobility system available
- Integrated crane lifting points
- Weather protection canopy available

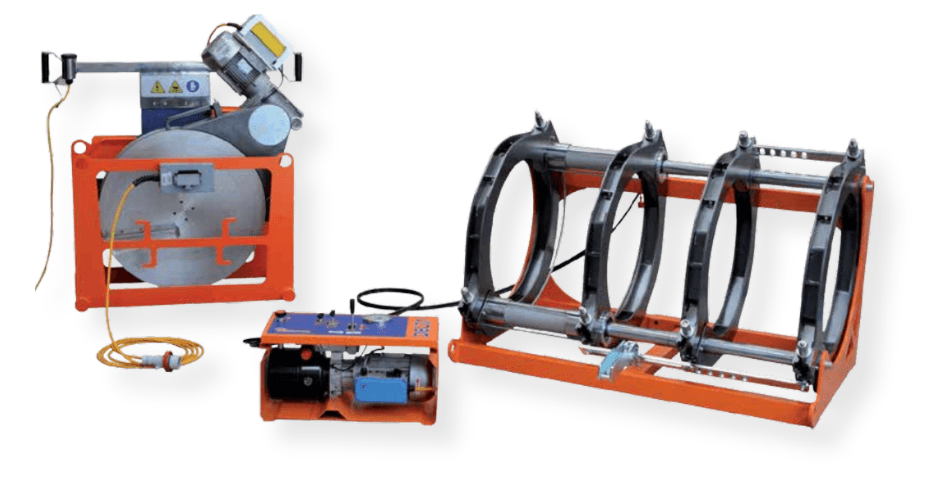

Ritmo DELTA 500mm
With DELTA 500 it is possible to weld fittings such as elbows, tees, junctions and stub ends. This is possible because the 3rd clamp can be anchored to the 1st and 2nd (movable) and slide along with the pipe. The fittings can then be locked in the 4th clamp. Short neck stub ends can be welded with the help of a stuck chuck tool (available on request).
Available in 230 V and 400 V.
Size range is 200mm up to 500mm
Contact our team for more information.

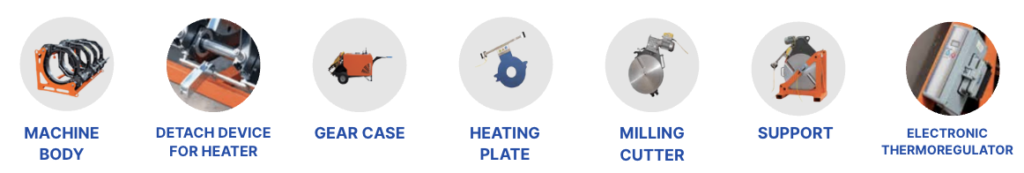

Standard Composition
- A machine body with a steel bearing frame
- Clamps in steel
- Insert in steel with quick locking/unlocking system. No tools required
- Self detaching device: helps removing the heating plate during welding procedure
- An extractable heating plate with separate thermometer for reading the working temperature
- An extractable electric milling cutter with a safety microswitch and overload cutout
- Milling cutter’s plastic control box is protected by a metal frame
- Unlocking Milling Cutter, fast removing system to speed up the extraction from machine body
- An electrohydraulic gearcase
- Digital electric connections box with the high precision (± 1°C) “Digital Dragon” temperature controller
- A milling cutter/heating plate support
ON REQUEST (ACCESSORIES)
- Clamps’ inserts from Ø 200 to 450 mm
- Tool for flange necks
- Electrical crane
- Special transport wooden case (DELTA 500 only)
- Special transport wooden case (machine body with trolley)
- Wooden case for inserts
- Machine body trolley
- Data-logging option
Technical Features
| Materials | HDPE/PP/PB/PVDF |
| Working range | Ø 200 ÷ 500 mm |
| Power supply | 230 VAC 50/60 Hz: 400 V Three phase 50/60 Hz |
| Total absorbed power | 7950 W (230 V); 7200 W (400 V) |
| Working temperature | 180° ÷ 280° C |
| Pressure working range | 0 ÷ 150 bar |
| Weight only body machines | 230 Kg |
| Dimension | 1265x790x780 mm |

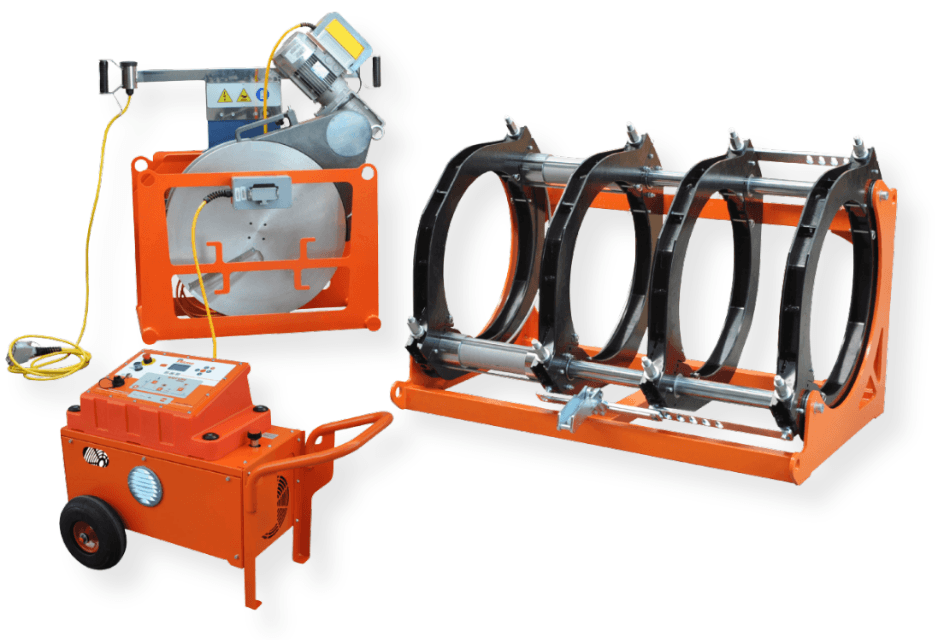

Ritmo DELTA 630mm
With DELTA 630 it is possible to weld fittings such as elbows, tees, junctions and stub ends. This is possible because the 3rd clamp can be anchored to the 1st and 2nd (movable) and slide along with the pipe. The fittings can then be locked in the 4th clamp. Short neck stub ends can be welded with the help of a stuck chuck tool (available on request).
Available in 230 V and 400 V.
Size range is 280mm up to 630mm.
Contact our team for more information.

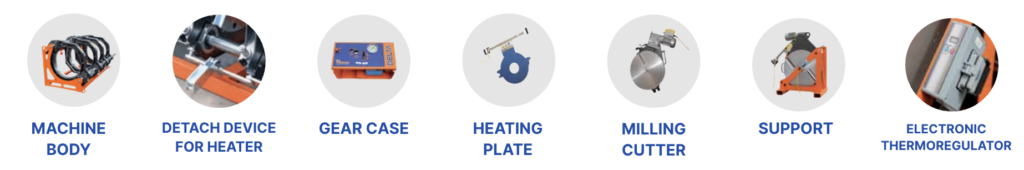

Standard Composition
- A machine body with a steel bearing frame
- Clamps in steel
- Insert in steel with quick locking/unlocking system. No tools required
- Self detaching device: helps removing the heating plate during welding procedure
- An extractable heating plate with separate thermometer for reading the working temperature
- An extractable electric milling cutter with a safety microswitch and overload cutout
- Milling cutter’s plastic control box is protected by a metal frame
- Unlocking Milling Cutter, fast removing system to speed up the extraction from machine body
- An electrohydraulic gearcase
- Digital electric connections box with the high precision (± 1°C) “Digital Dragon” temperature controller
– A milling cutter/heating plate support

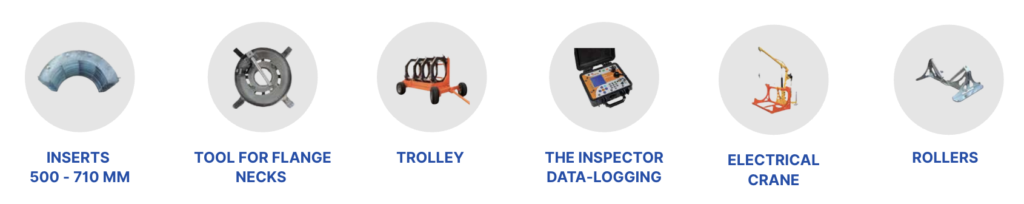

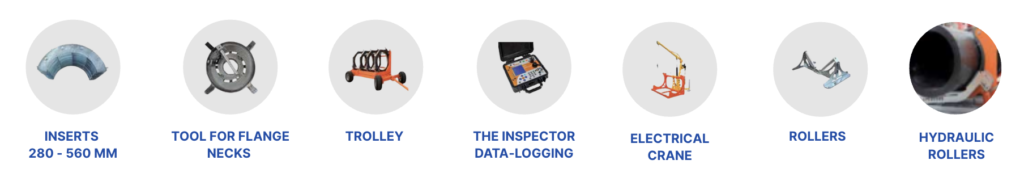

ON REQUEST (ACCESSORIES)
- Clamps’ inserts from Ø 200 to 450 mm
- Tool for flange necks
- Electrical crane
- Special transport wooden case (DELTA 500 only)
- Special transport wooden case (machine body with trolley)
- Wooden case for inserts
- Machine body trolley
- Data-logging option THE INSPECTOR by RITMO or PE Weld Bank system
- Rollers
Technical Features
| Materials | HDPE/PP/PB/PVDF |
| Working range | Ø 280 ÷ 630 mm |
| Power supply | 230 Three phase 50/60 Hz: 400 V Three phase 50/60 Hz |
| Total absorbed power | 12350 w |
| Working temperature | 180° ÷ 280° C |
| Pressure working range | 0 ÷ 150 bar |
| Weight only body machines | 415 Kg |
| Dimension | 1550x1010x1000 mm |
