Easylife Automatic Butt Welders

EASY LIFE Butt Welders by Ritmo are world recognised for their ease of use and reliability. They bring professional-grade butt fusion technology within reach of every contractor. These machines combine simplicity with reliability, perfect for any contractor involved with welding polymer piping.

These automatic self-aligning hydraulic butt fusion welding machines are suitable for welding pressure pipes for water, gas and other fluids. With a proven track record in NZ, and full support and servicing provided by UPG, these machines are trusted by welding technicians throughout the world. They are built according international standards (UNI 10565, ISO 12176-1) and supplied to many international markets.

We provide support and demonstration on any new butt welder purchase, including after-sale support and spares. With all equipment serviced in our workshop by trained technicians you can rely on us to provide service and support for the lifetime of your machine.

We also stock a wide range of critical spares to ensure you aren’t left stuck should you have a breakdown or issue on your site.

Standard EASY LIFE machine sizes we stock in NZ are the 200,250,315,355,500,630mm models.

Contact our team for more information, or to arrange a demonstration. We also have hire machines available which can be a great way to try the machine before you purchase.

High Quality Butt Fusion Welding

Features

Machine body built with a supporting frame, four clamps and two hydraulic cylinders with fast non-drip coupling connections. It comes with the fast-locking-adapters system SMARTLock patented by Ritmo.
A Teflon-coated (PTFE) heating plate with a built-in independent thermometer to check the working temperature.
An extractable electric milling cutter to face the heads of the pipes and/or fittings. It includes a safety micro-switch and a thermal circuit breaker.

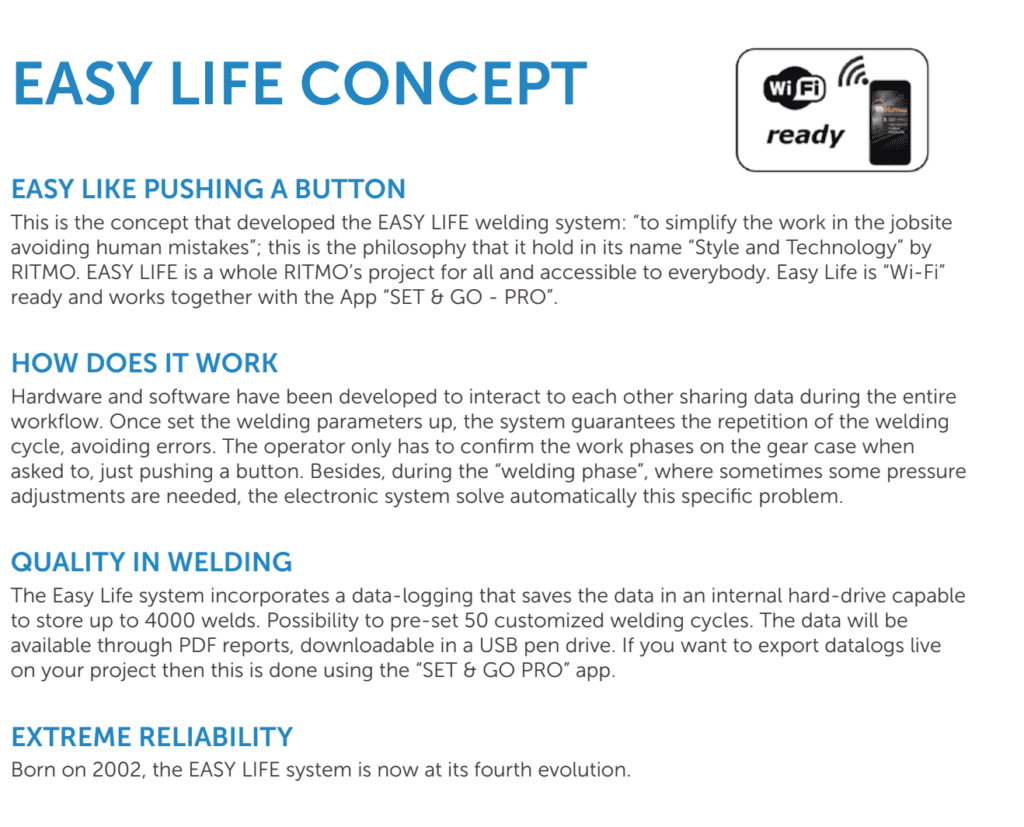

An electro-hydraulic gearcase protected from crashes and atmospheric corrosion by a plastic box. The electronic system guarantees the continuous repeat of the welding cycles and automatic control of the preset parameters, therefore the operator needs only to validate the welding phases.

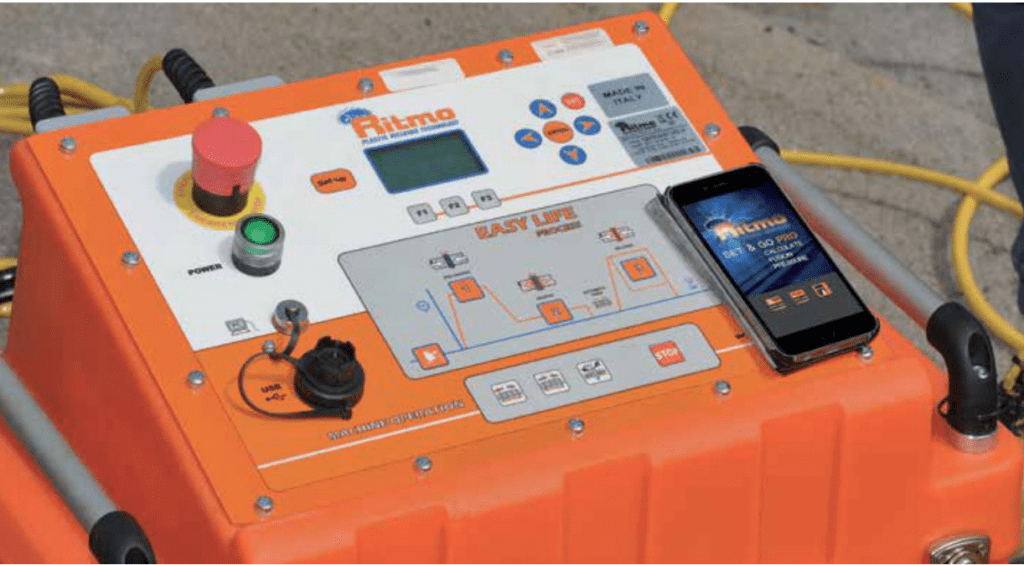

The user-friendly graphic display allows quick setting of desired parameters. The EASY LIFE system can store up to 4000 welding cycles and are easily exported off the machine as a PDF file. This report can be transferred to a PC/laptop through a USB port and data-management software.
Additionally, you can purchase an annual license for the SET & GO PRO app which enables you to run the whole welding process from your phone and upload QA welding logs to the cloud for project managers/engineers to access. The EASY LIFE machines are Wi-Fi ready and works easily together with the SET & GO PRO app.

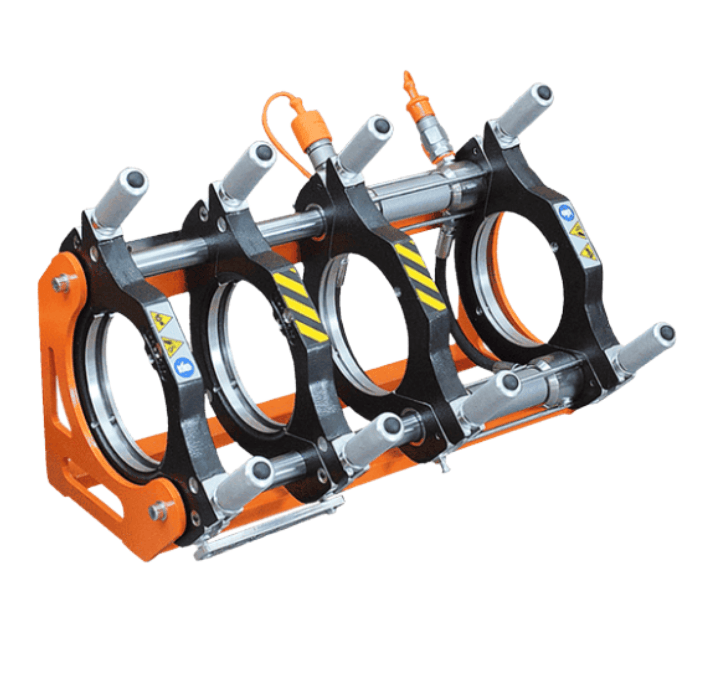

250mm EasyLife Butt Welder

Self-aligning hydraulic butt fusion machine, suitable for welding under-pressure pipes for water, gas and other fluids up to Ø 250 mm 8” DIPS. BASIC 250 EASY LIFE, thanks to a special gearcase, is able to manage the automated welding process. Built according to the International standards (UNI 10565, ISO 12176-1).

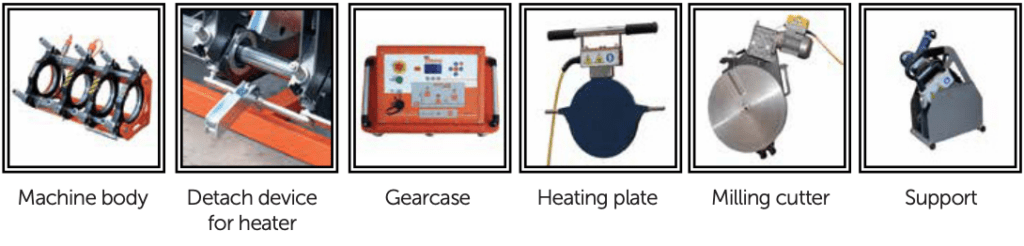

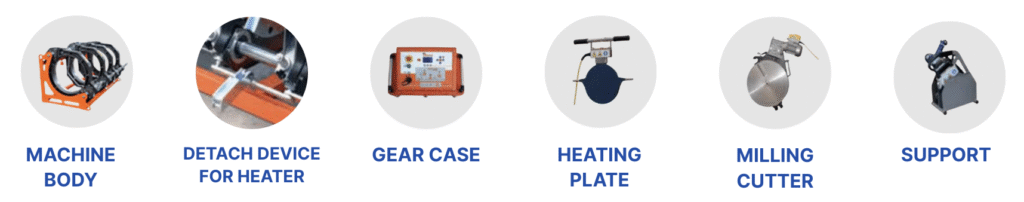

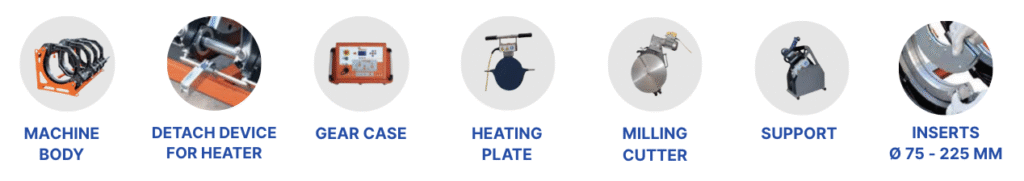

Standard Composition

Machine Body
Detach devie for heater
Gearcase
Heating plate
Manual scraper
Support

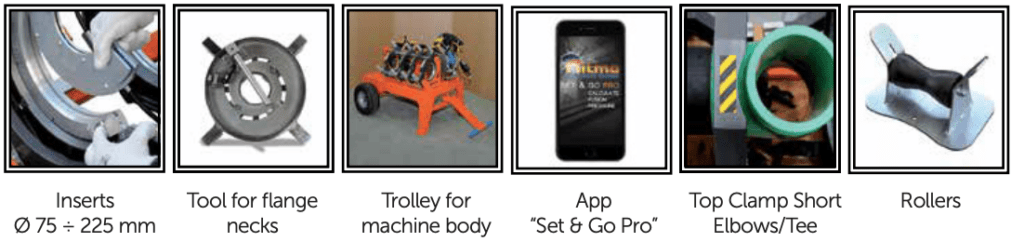

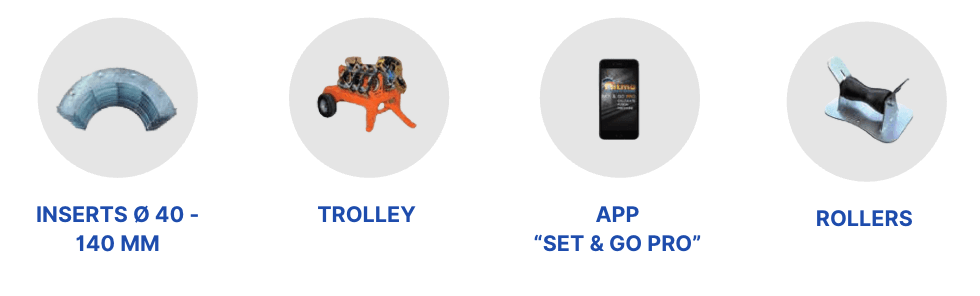

ON REQUEST (ACCESSORIES)
- Inserts Ø 75 ÷ 225 mm
- Tool for flange necks
- Trolley for machine body
- App “Set & Go Pro”
- Top Clamp Short Elbows/Tee
- Rollers
- and: Inserts Ø 2”÷ 8” IPS; 3”÷ 8” DIPS pre-insulated bag for heating plate, trolley for milling cutter/heating plate, wooden case for inserts

Technical Features

Materials	HDPE – PP – PB – PVDF
Working range	Ø 75 ÷ 250 mm
Power supply	110V; 230 V 50/60 Hz
Gearcase absorbed power	1100 W
Total absorbed power	3500 W
Memory	4000 reports
Working temperature	180° ÷ 280° C
Pressure working range	0 ÷ 150 bar
Weight only body machine	63 Kg
Weight gearcase	37 Kg
Dimension machine	850x470x400 mm
Dimension gearcase	585x384x463 mm

315mm EasyLife Butt Welder

Self-aligning hydraulic butt fusion machine, suitable for welding under-pressure pipes for water, gas and other fluids up to Ø 315 mm 10” DIPS. BASIC 315 EASY LIFE, thanks to a special gearcase, is able to manage the automated welding process. Built according to the International standards (UNI 10565, ISO 12176-1).

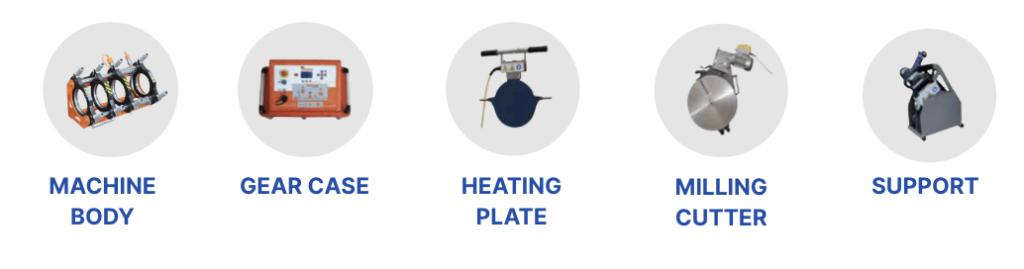

Standard Composition

Machine Body
Detach devie for heater
Gearcase
Heating plate
Manual scraper
Support

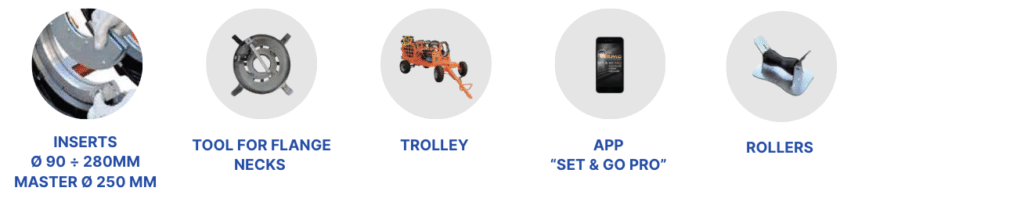

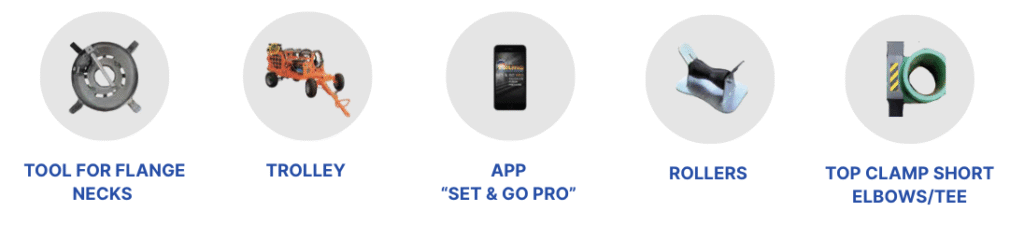

ON REQUEST (ACCESSORIES)
- Inserts Ø 75 ÷ 225 mm
- Tool for flange necks
- Trolley for machine body
- App “Set & Go Pro”
- Top Clamp Short Elbows/Tee
- Rollers
- and: Inserts Ø 2”÷ 8” IPS; 3”÷ 8” DIPS pre-insulated bag for heating plate, trolley for milling cutter/heating plate, wooden case for inserts

Technical Features

Materials	HDPE – PP – PB – PVDF
Working range	Ø 90 ÷ 315 mm
Power supply	110V; 230 VAC 50/60 Hz
Gearcase absorbed power	1100 W
Total absorbed power	4500 W
Memory	4000 reports
Working temperature	180° ÷ 280° C
Pressure working range	0 ÷ 150 bar
Weight only body machine	86 Kg
Weight gearcase	37 Kg
Dimension machine	981x586x520 mm
Dimension gearcase	585x384x463 mm

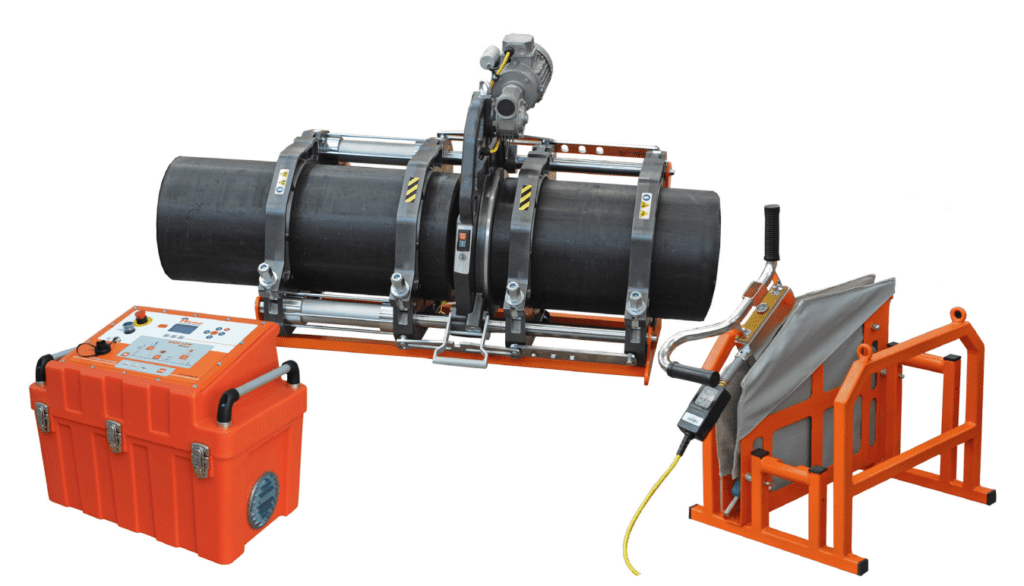

355mm EasyLife Butt Welder

Standard Composition

Machine Body
Detach devie for heater
Gearcase
Heating plate
Manual scraper
Support

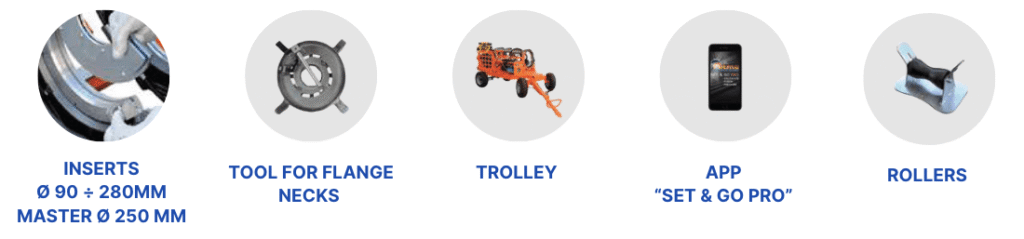

ON REQUEST (ACCESSORIES)
- Inserts Ø 75 ÷ 225 mm
- Tool for flange necks
- Trolley for machine body
- App “Set & Go Pro”
- Top Clamp Short Elbows/Tee
- Rollers
- and: Inserts Ø 2”÷ 8” IPS; 3”÷ 8” DIPS pre-insulated bag for heating plate, trolley for milling cutter/heating plate, wooden case for inserts

Technical Features

Materials	HDPE – PP – PB – PVDF
Working range	Ø 90 ÷ 315 mm
Power supply	110V; 230 VAC 50/60 Hz
Gearcase absorbed power	1100 W
Total absorbed power	4500 W
Memory	4000 reports
Working temperature	180° ÷ 280° C
Pressure working range	0 ÷ 150 bar
Weight only body machine	86 Kg
Weight gearcase	37 Kg
Dimension machine	981x586x520 mm
Dimension gearcase	585x384x463 mm

500mm Delta EasyLife Butt Welder

This is a self-aligning machine, suitable for welding ducts for the transport of water, gas and other fluids under pressure, up to Ø 500 mm 18” DISP). The DELTA 500 was designed in accordance to the International correspondent standards (UNI 10565, ISO 12176-1).

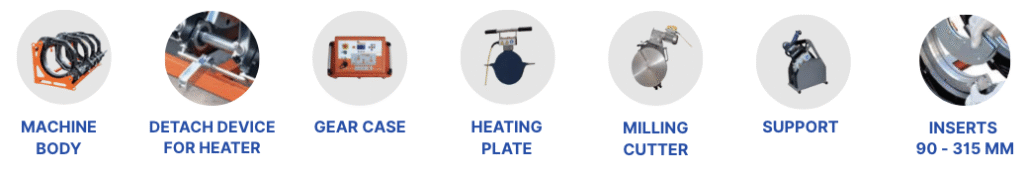

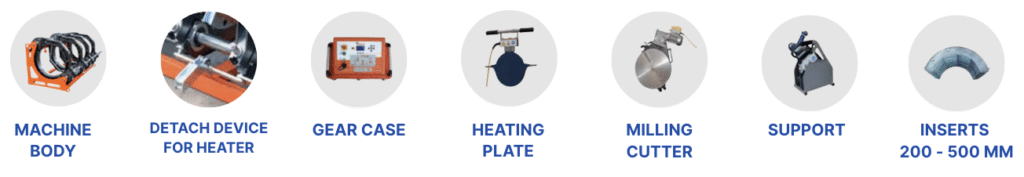

Standard Composition

Machine Body
Detach devie for heater
Gearcase
Heating plate
Manual scraper
Support
ON REQUEST (ACCESSORIES)
- Inserts Ø 75 ÷ 225 mm
- Tool for flange necks
- Trolley for machine body
- App “Set & Go Pro”
- Top Clamp Short Elbows/Tee
- Rollers
- and: Inserts Ø 2”÷ 8” IPS; 3”÷ 8” DIPS pre-insulated bag for heating plate, trolley for milling cutter/heating plate, wooden case for inserts

Technical Features

Materials	HDPE/PP/PB/PVDF
Working range	Ø 200 ÷ 500 mm
Power supply	230 VAC Single phase 50/60 Hz 400 VAC Three phase 50/60 Hz
Total absorbed power	7950 W (230 V); 7200 W (400 V)
Memory	4000 report
Working temperature	180° ÷ 280° C
Pressure working range	0 ÷ 150 bar
Weight body machine	230 Kg
Weight gearcase	37 Kg
Dimension body machine	1265x790x780 mm
Dimension gearcase	585x384x463 mm

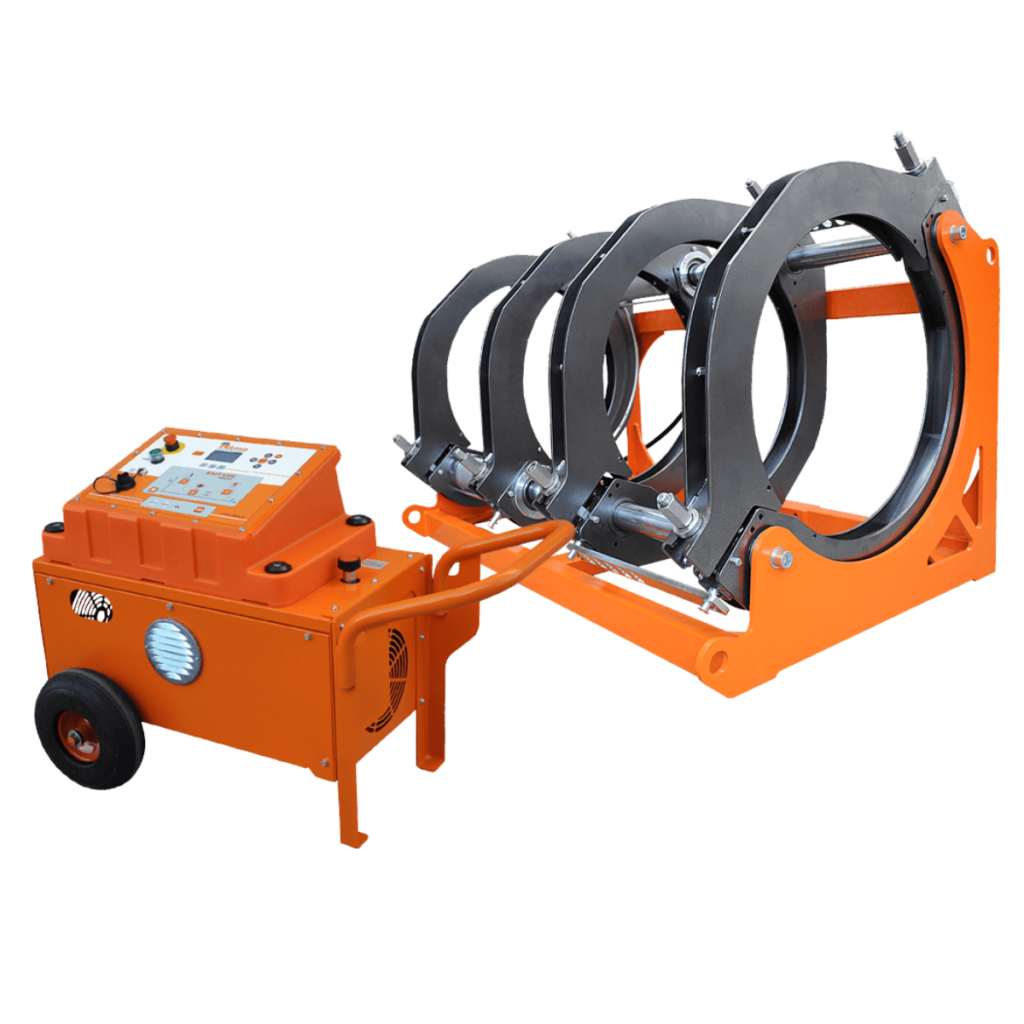

630mm Delta EasyLife Butt Welder

This is a self-aligning machine, suitable for welding ducts for the transport of water, gas and other fluids under pressure, up to Ø 630 mm – 24” IPS. The DELTA 630 was designed in accordance to the International correspondent standards (UNI 10565, ISO 12176-1).

Standard Composition

Machine Body
Detach devie for heater
Gearcase
Heating plate
Manual scraper
Support

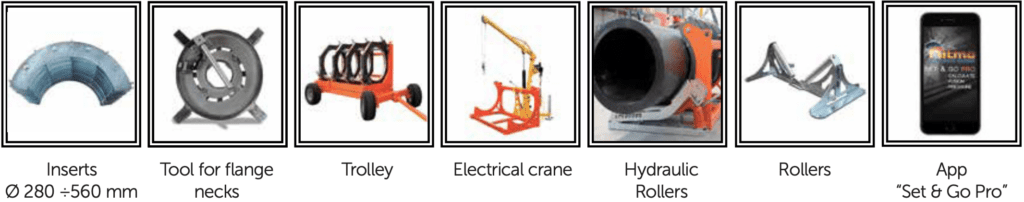

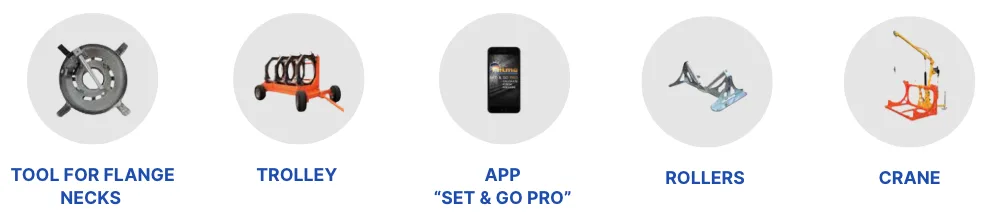

ON REQUEST (ACCESSORIES)
- Inserts Ø 75 ÷ 225 mm
- Tool for flange necks
- Trolley for machine body
- App “Set & Go Pro”
- Top Clamp Short Elbows/Tee
- Rollers
- and: Inserts Ø 2”÷ 8” IPS; 3”÷ 8” DIPS pre-insulated bag for heating plate, trolley for milling cutter/heating plate, wooden case for inserts

Technical Features

Materials	HDPE/PP/PB/PVDF
Working range	Ø 280 ÷ 630 mm
Power supply	230 Three phase 50/60 Hz: 400 V Three phase 50/60 Hz
Total absorbed power	12350 W
Absorbed power gearcase	1500 W
Memory	4000 reports
Working temperature	180° ÷ 280° C
Pressure working range	0 ÷ 150 bar
Weight only body machine	415 Kg
Weight gearcase	50 Kg
Dimension body machine	1550x1010x1000 mm
Dimension gearcase	1000x580x680 mm
