Elektra Electrofusion EF Welders
The ELEKTRA range of EF welders from Ritmo Italy are for PE Pressure Electrofusion fittings. These universal electrofusion machines are characterised by high performance and significantly reduced weight.
We stock a 3 different models, covering from 20mm up to 1200mm diameter pipe. Below are the datasheets for each model we stock.
ELEKTRA EF Welder is a universal electrofusion machine, with barcode scanner, universal lead ends so you can weld any brand of EF fitting. The welders have a in built memory for datalogging all welds, and USB download report providing you with a PDF file for your QA requirements.
We stock all spare parts in NZ, and provide full servicing and calibration to ensure your welder will serve your company for many years to come.
All welders are 10amp plug, except the XL model which comes with 15amp plug fitted.
ELEKTRA LIGHT is an universal electrofusion machine, suitable for welding pipe/fittings for the transport of gas, water and for welding fire sprinkler system (HDPE, PP, PP-R couplings from 8 to 48 V).
The Elektra Light machine is made in compliance with international standards.
This is welding machine’s structure is light weight, so it is extremely easy to carry around.
Composed of:
machine body, an in built memory with 325 welding cycles – report PDF file – featuring the possibility of transferring data to a Pc/Laptop.

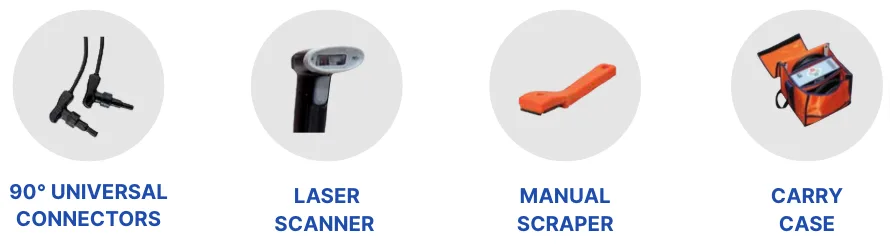

– Elektra Light
– Universal adapter Ø 4,0 – 4,7 mm
– Laser scanner
– Trevira bag
– Manual scraper
ON REQUEST (ACCESSORIES)

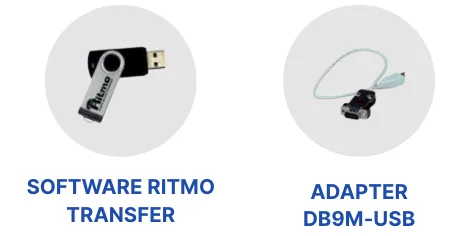

Kit for data transfer Machine to Pc/Laptop (adaptor DB9M/USB and Ritmo Transfer)
| Materials | HDPE/PP/PP-R |
| Working range | Ø 20 ÷ 125/160 mm |
| Power supply | 110 V single phase 50/60 Hz 230 V single phase 50/60 Hz |
| Total abdorbed power | 1300 W |
| Max output cu | 8 A |
| 60% Duty Cycle output | 23 A |
| Memory capacity | 325 reports |
| Protection degree | IP 54 |
| Dimensions | 200x250x210 mm |
| Weight | 7 Kg |
ELEKTRA M is an universal electrofusion machine characterized by high performance and reduced weight. It is available in two different power supplies: 230V and 110V. The welding machine has been designed to weld EF fittings up to OD 315 mm (230 V version) or 500 mm (110 V version) for PE, PP, PP-R high pressure pipelines. It can weld EF fittings within the range 8 ÷ 48 V. Provided with:
– High resistance technopolymer shell
– “Defender” protection system against dust and rain
– Lifting handle and cable wrapping
– in-built memory of 4000 welding report
– Possibility to download the welding report thanks to the USB port in PDF, CSV, BIN format. For BIN format it is necessary the RITMO transfer software. The USB port is also used to upgrade the welding machine firmware and to plug the ESC-POS printer to get immediately the welding report printed on site.
– 2,4” LCD Graphic display
– Intuitive control panel with the possibility to customize the menu with 20 different languages

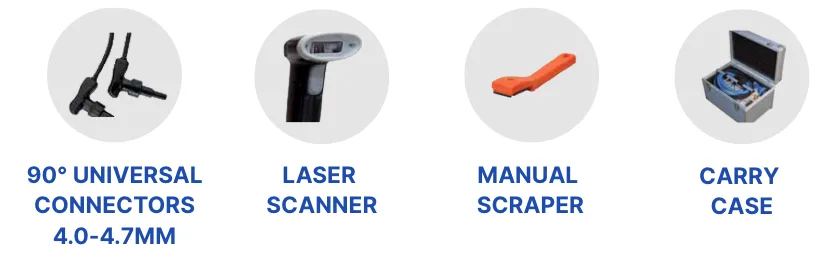

– 90° universal connectors 4.0-4.7mm, no need of adapters
– Laser scanner in order to read the EF fitting barcode and to set automatically the welding parameters according to the ISO 13950. The laser technology of the scanner enhances the reading quality in case of severe light reflections or contrasts. It is also possible to enter manually both the welding parameters (Voltage/Time) and the welding barcode digits.
– Traceability: ISO 12176-3 Operator traceability; ISO 12176-4 Fitting/ pipe traceability
ON REQUEST (ACCESSORIES)
– In-built GPS device
| Materials | HDPE/PP/PP-R |
| Working range | Ø 20 ÷ 500 mm – 1/2″ IPS ÷ 20″ IPS (110 V) Ø 20 ÷ 315 mm – 1/2″ IPS ÷ 12″ IPS (230 V) |
| Power supply | 110 V ±15% single phase 50/60 Hz 230 V ±15% single phase 50/60 Hz |
| Total abdorbed power (60% Duty Cycle output) | 2200 W (110 V) 2300 W (230 V) |
| Max output current | 80 A – 110 V 100 A – 230 V |
| Working temperature range | -20° +50° C |
| Memory capacity | 4000 reports |
| Protection degree | IP 54 |
| Dimensions | 246 x 390 x 240 mm |
| Dimensions carryng case | 290 x 445 x 295 mm |
| Weight machine body + welding and power supply cable + laser scanner | 9,2 Kg |
ELEKTRA XL is an universal electrofusion machine characterized by high performance and reduced weight. The welding machine has been designed to weld EF fittings* up to OD 1600 mm for PE, PP, PP-R high pressure pipelines. It is available in the 230 V version and in two different EF fittings range*: 8 ÷ 48 V or 8÷80 V. Provided with:
– High resistance technopolymer shell
– “Defender” protection system against dust and rain
– Lifting handle and cable wrapping
– in-built memory of 4000 welding report
– Possibility to download the welding report thanks to the USB port in PDF, CSV, BIN format. For BIN format it is necessary the RITMO transfer software. The USB port is also used to upgrade the welding machine firmware and to plug the ESC-POS printer to get immediately the welding report printed on site.
– 2,4” LCD Graphic display
– Intuitive control panel with the possibility to customize the menu with 20 different languages

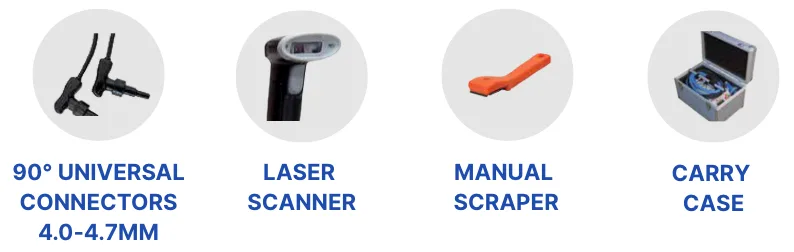

– 90° universal connectors 4.0-4.7mm, no need of adapters
– Laser scanner in order to read the EF fitting barcode and to set automatically the welding parameters according to the ISO 13950. The laser technology of the scanner enhances the reading quality in case of severe light reflections or contrasts. It is also possible to enter manually both the welding parameters (Voltage/Time) and the welding barcode digits.
– Traceability: ISO 12176-3 Operator traceability; ISO 12176-4 Fitting/ pipe traceability
* Working range might vary according to fittings brand. Check with the fitting manufacturer the power and the welding time required.
| Materials | HDPE/PP/PP-R |
| Working range | Ø 20 ÷ 500 mm – 1/2″ IPS ÷ 20″ IPS (110 V) Ø 20 ÷ 315 mm – 1/2″ IPS ÷ 12″ IPS (230 V) |
| Power supply | 110 V ±15% single phase 50/60 Hz 230 V ±15% single phase 50/60 Hz |
| Total abdorbed power (60% Duty Cycle output) | 2200 W (110 V) 2300 W (230 V) |
| Max output current | 80 A – 110 V 100 A – 230 V |
| Working temperature range | -20° +50° C |
| Memory capacity | 4000 reports |
| Protection degree | IP 54 |
| Dimensions | 246 x 390 x 240 mm |
| Dimensions carryng case | 290 x 445 x 295 mm |
| Weight machine body + welding and power supply cable + laser scanner | 9,2 Kg |
