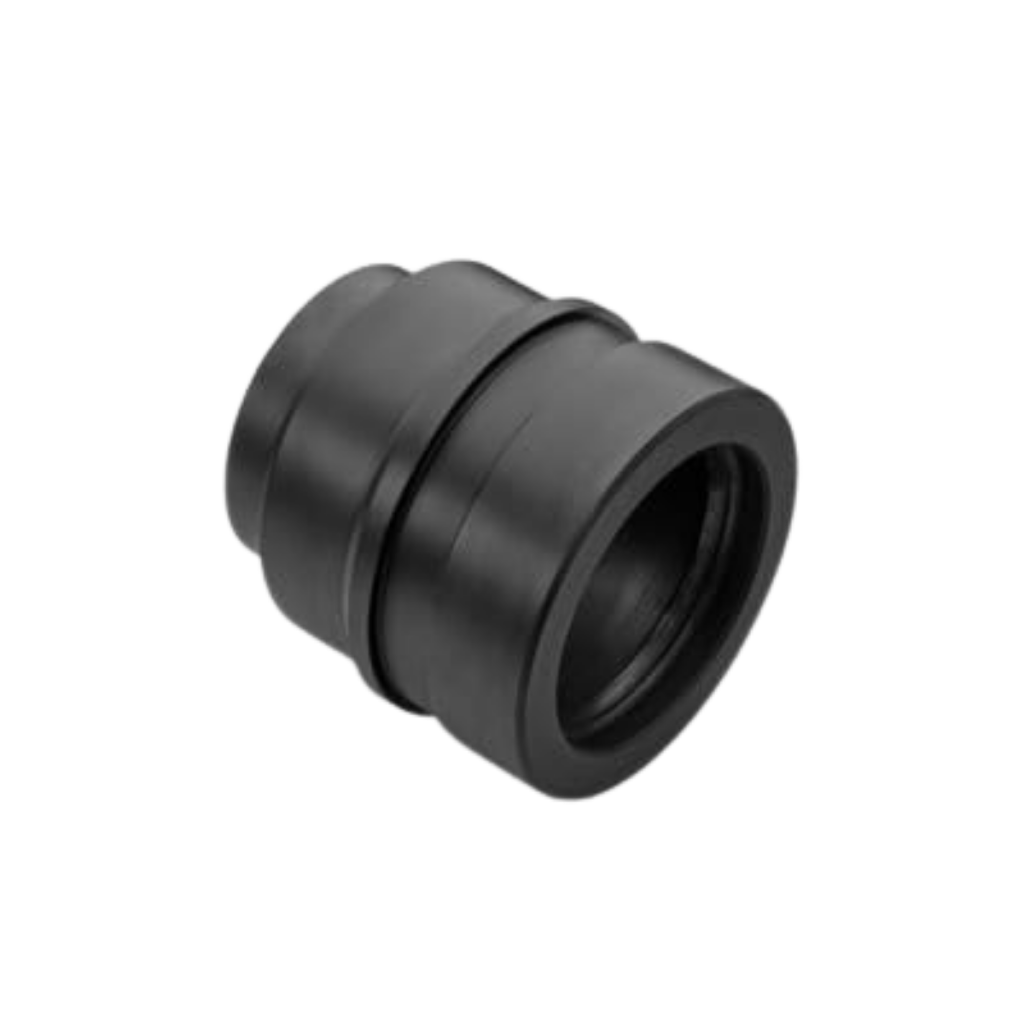

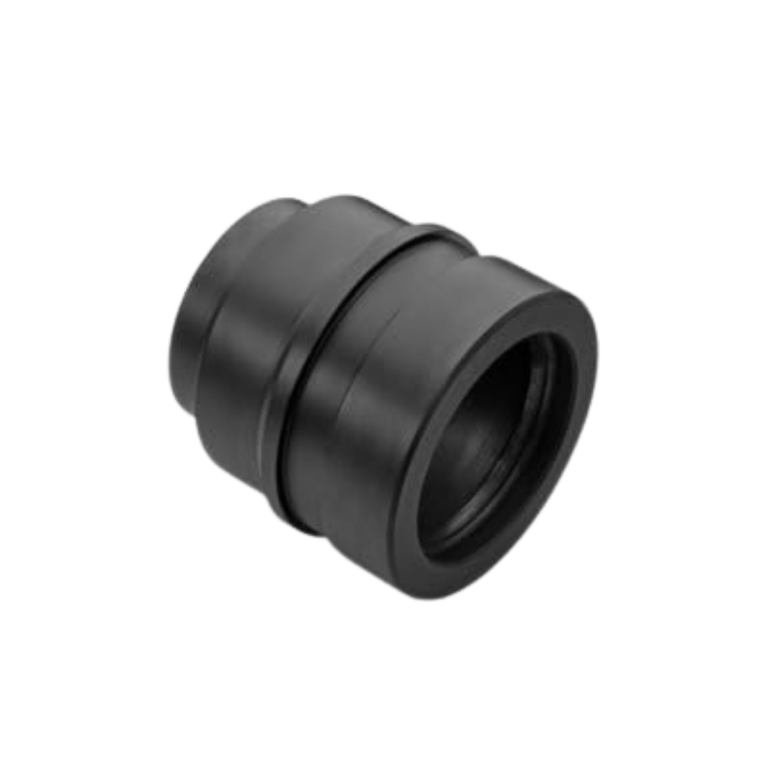

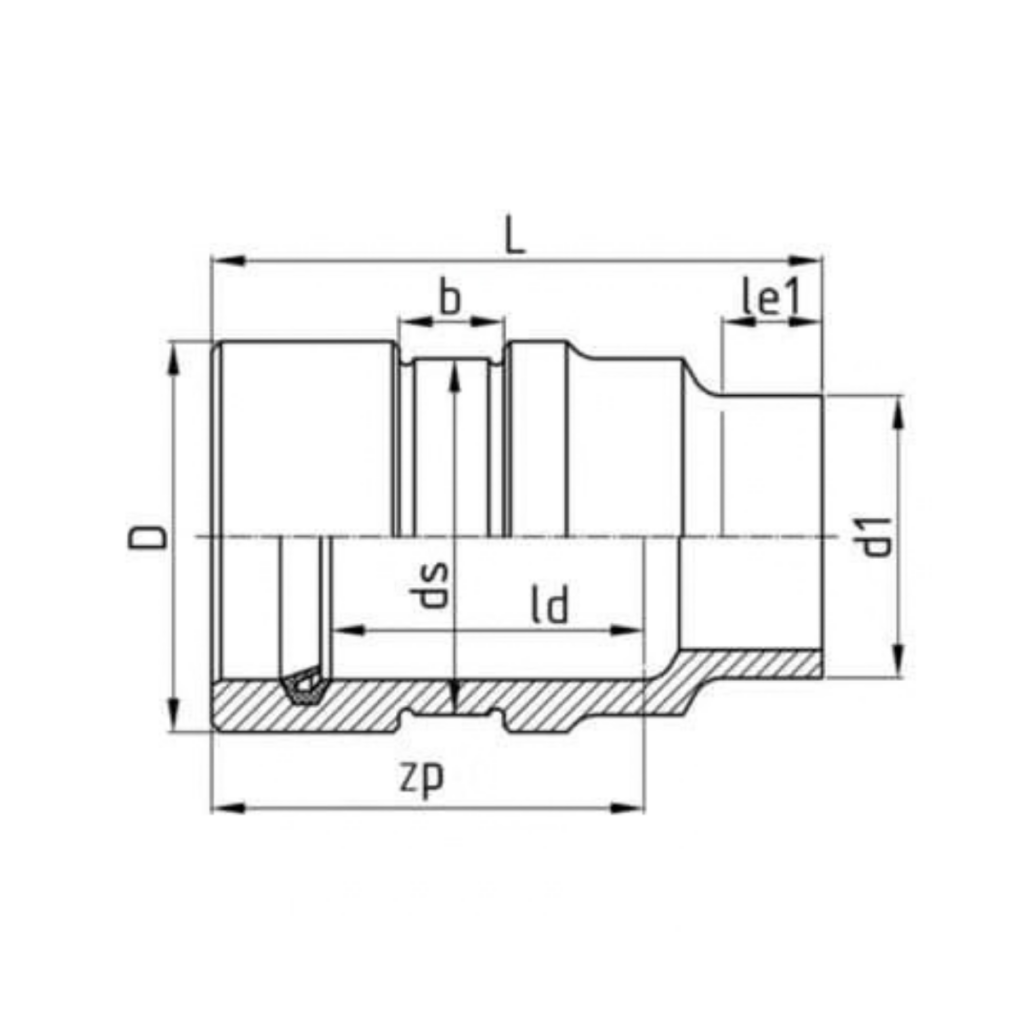

Expansion Socket - above ground
Push-fit connection for absorbing axial movements above ground
The Reinert-Ritz expansion sockets provide a detachable push-fit connection designed to absorb axial movements in above-ground pressure line pipe runs. The PE100 socket incorporates a System 3S lip seal that permits pipe axial movement while maintaining full pressure-resistant performance, even under negative pressure.
The fixed point (anchor point) design standard features a clamp seat to secure and stabilise the pipe run. A metal clamp must be installed here to provide a fixed point on the pipline.
EPDM lip seal comes standard; NBR variants are available for specific applications. Optional configurations allow the clamp seat to be omitted, and transitions to other materials of the same dimensions such as PVC are possible, but need design input from Reinert-Ritz.
*Note: for above ground installation only.
Applications
Joining and expansion sockets enable flexible, pressure-resistant connections in above-ground pipe systems where axial thermal movement must be accommodated. The fixed point design anchors the pipe run while the lip seal permits controlled expansion and contraction.
Use joining and expansion sockets when you need:
Detachable connections that accommodate thermal expansion and contraction
Axial movement absorption
Full pressure performance in non-buried applications
Negative pressure capability for suction applications
Fixed point clamp anchoring to control pipe movement
Compatibility with PE100 as standard – transitions to other materials on request
Simple push-fit assembly and disassembly
Design flexibility (optional clamp seat removal)
Seal material selection for different water types (EPDM for drinking water, NBR for wastewater)
Specified expansion path capacity to prevent end collapse
*Installation limited to above-ground pressure lines under standard conditions. Buried applications possible only under specific conditions.
Key Properties
| Specifications | Details |
| Body material | PE100 (single-piece homogeneous) |
| Connection type | Detachable push-fit (push-in and expansion joint) |
| Seal type | System 3S lip seal |
| Standard seal | EPDM (drinking water applications) |
| Optional seal | NBR (wastewater applications) |
| Pressure rating | Fully pressure-resistant; rated for negative pressure |
| Anchorage | Fixed point design with clamp seat standard |
| Movement function | Permits axial pipe movement |
| Spigot end | PE Butt welding or Electrofusion compatible |
| Installation type | Above-ground pressure lines (non-buried) |
| Clamp force | Does not exert radial force on socket body |
| Standards | DIN EN 12201, DVS 2207, DVS 2210, DIN EN 10204, DIN EN ISO 9001, DIN EN ISO 50001, DIN 3567 |
| Approvals/certificates | DIN EN 10204 inspection certificate 3.1 on semi-finished product with MFR and OIT; PE100 material per PE100+ Association |
| Manufacturing | PE100+ Association compliant; DIN EN ISO 9001 quality assurance; single-piece homogeneous PE body; DIN EN 10204 certificates included; manufacturer certified to ISO 9001:2015 and ISO 50001:2011 |
