HDPE Drainage Electrofusion

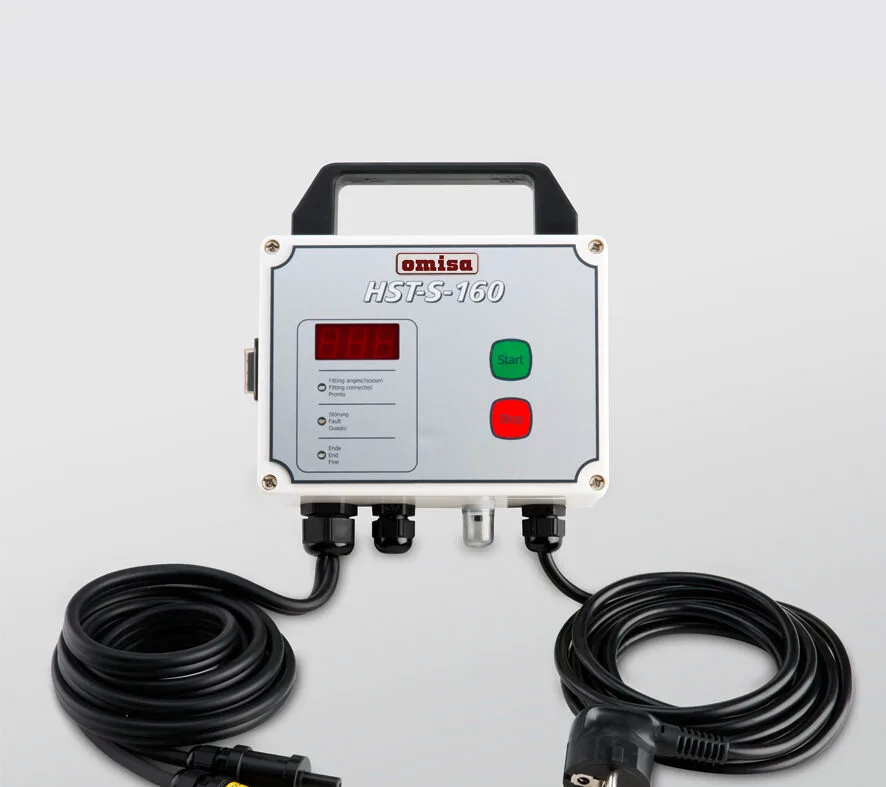

OMISA’s all-purpose electrofusion welder HST–S–160 offers easy, convenient, and expert welding of PE fittings sized 40 – 160 mm in wastewater and roof drainage applications.
Controlled by a microcontroller, this next-generation welder for single-hand operation is equipped with a feature that compensates temperature and welding duration in jointing applications in non-pressurized networks with fittings from Geberit, Valsir, Akatherm, Eurofusion, Waviduo, Coes, and Vulcathene-Euro.
The welding process is monitored for its full duration, and all relevant information is displayed on the seven-segment screen. The standard delivery includes a handheld scraper meant for professional pipe preparation before the welding operation.
With its very compact dimensions, a weight of approx. 1.4 kg, and its long power supply and welding cables, the welder offers an enormous working radius, turning it into a great helper that allows working those hard to reach lines.
Welding machine complete with cables
Carry bag
DETAILSWorking range: 32mm-160mm
Coupler brands supported: Akaterm-Euro; Gebrit; Valsir; Coes; Waviduo
Maximum output current: 4.9A
Maximum power: 900W
Operating temp range: -5 to 40°C
Dimensions: Machine 250 x 110 x 65mm
Weight: Machine 1.7Kg with convenient carry bag

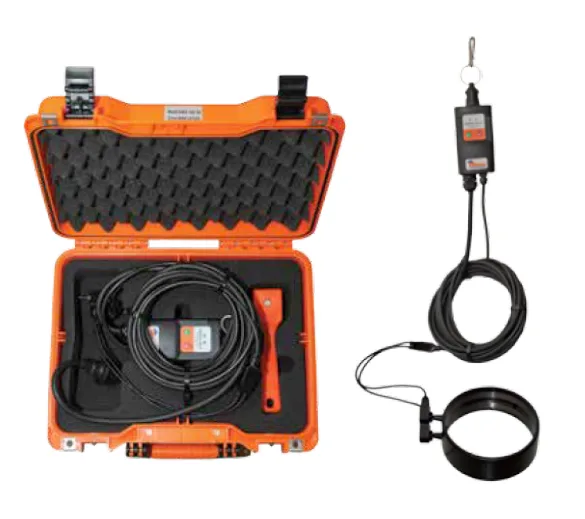

This HDPE Drainge electrofusion machine is suitable for welding electrofusion fittings in HDPE from Ø 32 to Ø 160 mm (1” IPS – 5” IPS, for low pressure conduits (Vulcathene-Eurofusion, Akatherm-Eurofusion, Geberit, Valsir, Coes, Waviduo). MUSTANG 160 V2 automatically detects connection to the fitting to be welded and compensates current supplied according to ambient temperature. It is also capable of detecting any malfunction that could occur before or during welding procedures. MUSTANG 160 V2 is made in compliance with the current safety standards and Directives, and the structure is light weight which makes it extremely easy to carry around.

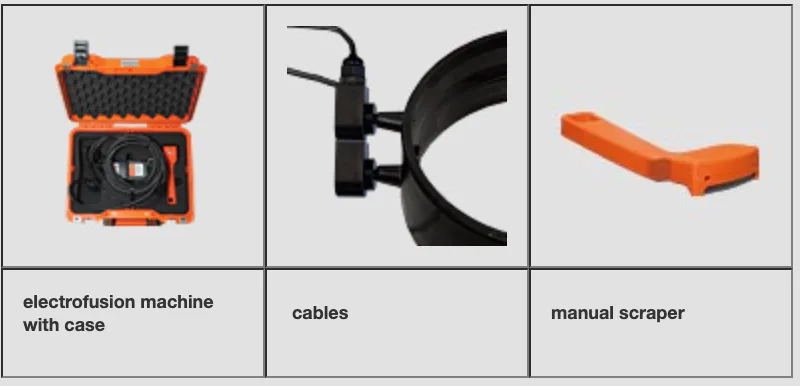

Welding machine complete with welding cable with 90 ° connectors,
fixing carabiner
plastic carrying case
manual scraper
| Materials | HDPE – low pressure |
| Working range | Ø 32 ÷ 160 mm |
| Power supply | 230 V single phase 50/60 Hz |
| Total abdorbed power | 1000 W |
| Output | 5 A |
| Outside temperature range | -10°C ÷ 45° C |
| Ambient temperature probe | Electronic |
| Protection degree | IP 54 |
| Dimensions machine | 65 x 185 x 46 mm |
| Dimensions carrying case | 400 x 330 x 160 mm |
| Weight machine | 1 Kg |
| Weight machine and carrying case | 3,45 Kg |
