HP Flanges

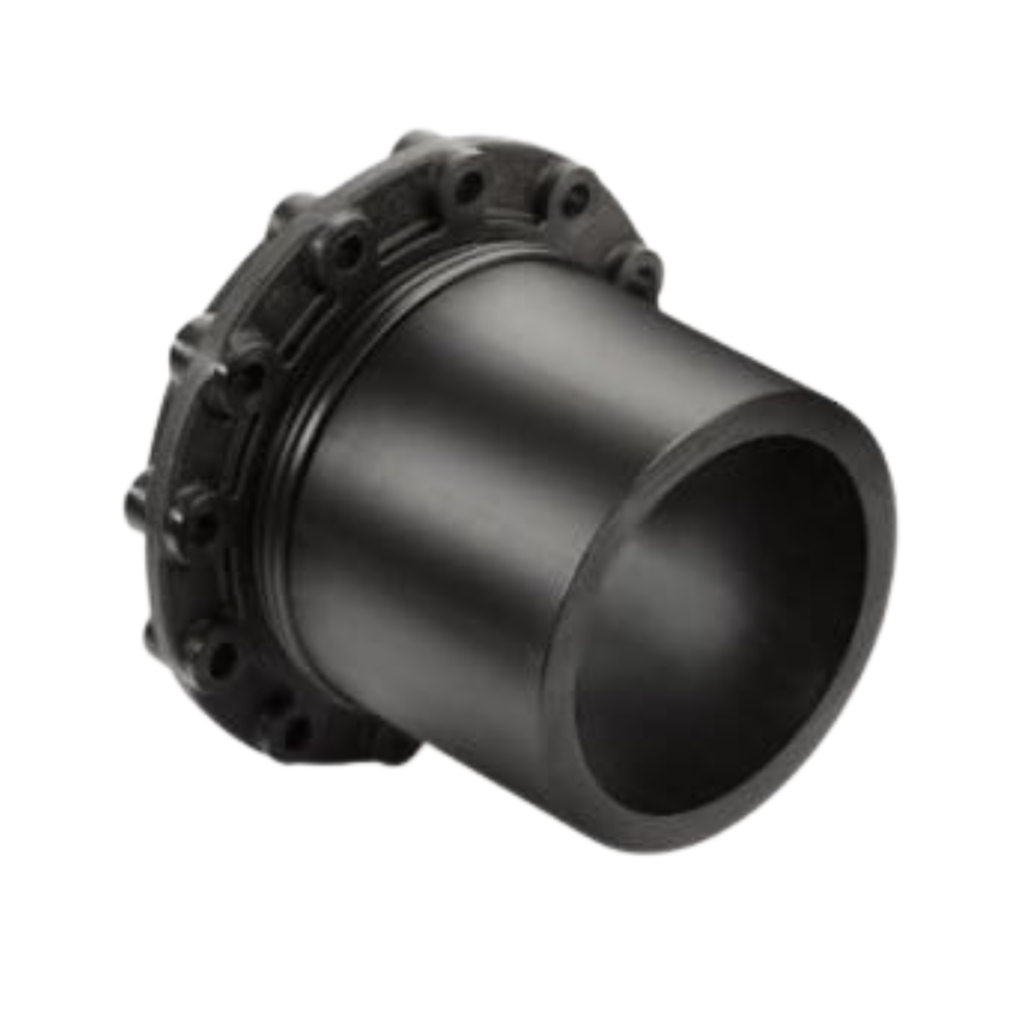

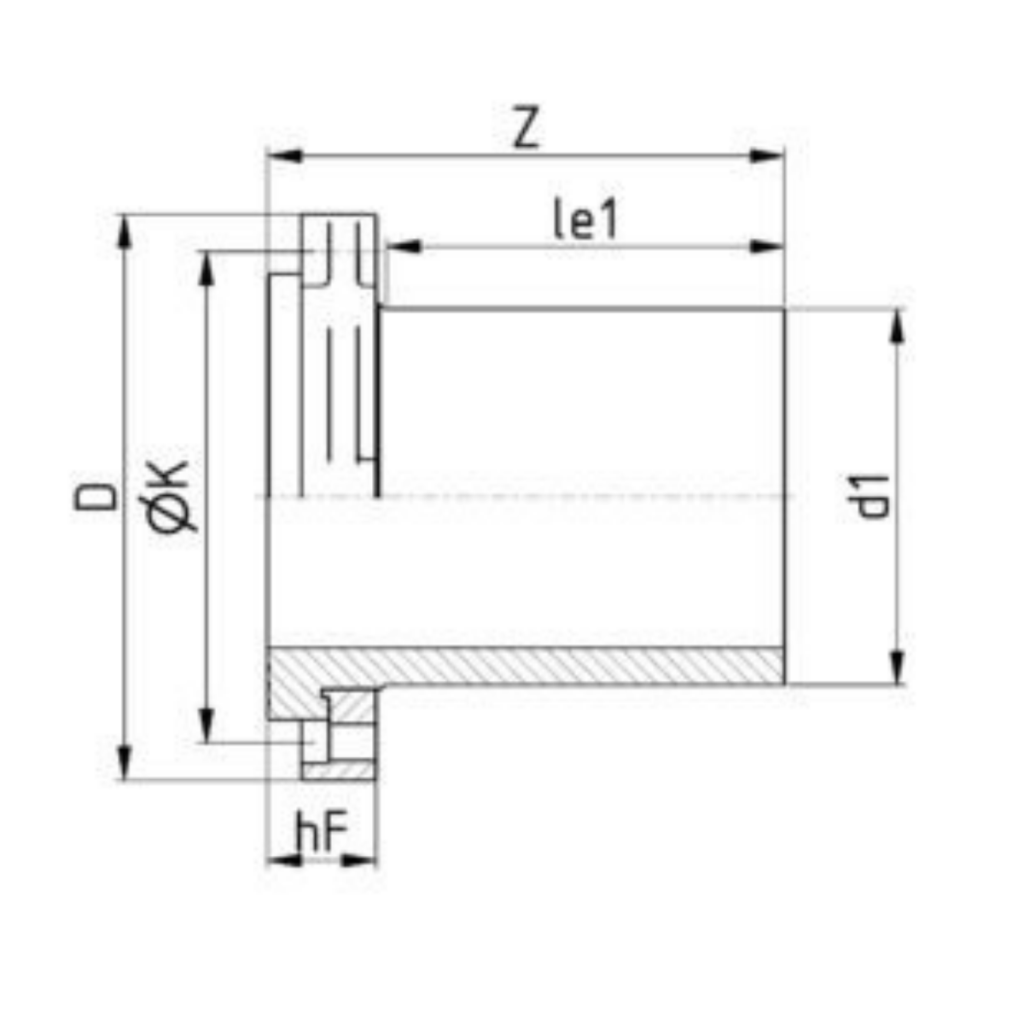

Similar for size pipeline flange connections the High Performance (HP) Flange provides a purpose-designed PE stub end with an integrated rotating backing ring.

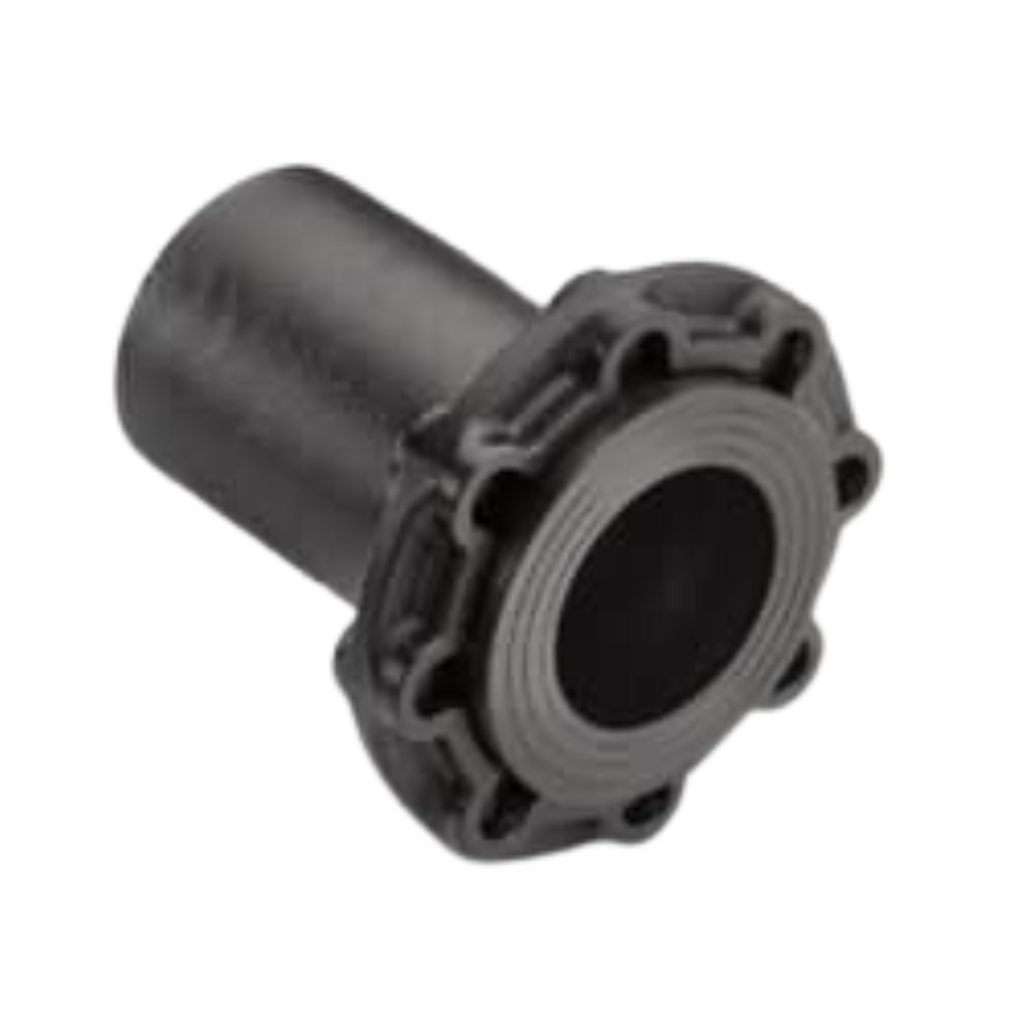

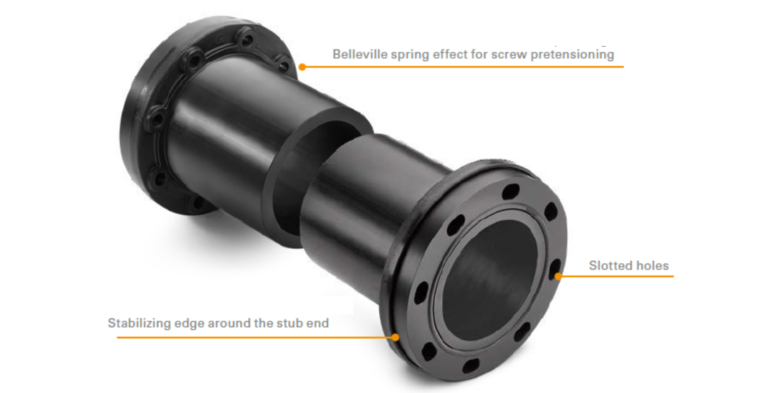

HP flanges from Reinert-Ritz are high-performance solutions for the full pressure load capacity of a loose flange and backing flange connection. A special PE100 welding neck collar and a backing flange are precisely matched and captively connected to each other. The collar and flange engage positively at their connecting surfaces like a tongue and groove, transferring axial pipe forces across the entire flange surface.
This design protects the PE collar from deformation and enables pressure loads up to 25 bar depending on dimensions. Particularly important for high pressure pipelines.
Reinert-Ritz are the experts in sophisticated connections.
Key Properties
| Specifications | Details |
| Collar material | PE100 welding spigot |
| Backing flange material | Stainless Steel or Steel with plastic coating or corrosion-free fibre-reinforced plastic (DIN EN 10310) |
| Hole pattern | AS4087 PN16 (other patterns on request) |
| Integrated Seal | Profile seal recommended or alternative flat gasket |
| Welding methods | Butt fusion or Electrofusion |
| Pressure capacity | Up to 25 bar (dimension dependent) |
| Connection type | Captively connected unit |
| Optional versions | DIN EN 1092–1 PN 25 design; stainless steel backing flange; other flange grades or standards (ANSI, ASME, JIS, BS, AS, NS, SABS, etc.) |
| Standards | DIN EN 12201, DIN EN 1092–1, DVS 2207, DVS 2210, DIN EN 10204, DIN EN ISO 9001, DIN EN ISO 50001, DVGW W 400–2, DVGW GW 335, AS4087 Pn16 |
| Approvals/certificates | DVGW: DV-8606BT0423 and DV-8611BT0424; DIN EN 10204 inspection certificate 3.1 on semi-finished product with MFR and OIT; PE100 material per PE100+ Association |
| Manufacturing | PE100+ Association compliant; DIN EN ISO 9001 quality assurance; single-piece homogeneous injection-moulded PE bodies; DIN EN 10204 certificates included; manufacturer certified to ISO 9001:2015 and ISO 50001:2011 |
Applications
HP flanges enable full pressure connections between PE100 pipe and other flanged fittings while maintaining the load capacity of a loose flange assembly. The positive engagement of the collar and backing flange prevents deformation and ensures reliable performance under full pressure.
Use HP flanges when you need:
- Full pressure capacity in a matched, single assembly
- Direct engagement between collar and flange for strength
- Protection of PE collar from deformation under load
- Compatibility with loose flange dimensions and pressure ratings
- Reliable connections up to 25 bar depending on size
- Choice of backing flange materials for different environments
