Powered Pipe Cutters
A new, unique pipe cutting solution without compare for large diameter plastic pipes.
With this machine you will cut pipe sizes from 2.3″ to 39.4″.
The cutting capacity for max. pipe wall thickness is 2.9”.
Mainly invented and intended for large diameter plastic pipes, but additionally you can also cut smaller pipes.
As the machine is a special pipe saw for plastic pipe cutting, most of the most common plastic pipes can be cut. This includes pipe materials such as PP, PE, PVC, HDPE.
You will make seamless cuts directly on-site (or wherever the pipe is located at). The set-up is easy as is the operating of machine.
The pipe cutting result is accurate and straight. Thanks to the lightweightness, the saw is convenient to move around.
| Pipe cutting capacity (OD) | 2.3″ to 40″ (60mm – 1000mm) |
|---|---|
| Max. wall thickness | 2.9” (75mm) plastic |
| Pipe material | Plastic |
| Current | 1600 W (220-240 V) or 15 A (110-120 V) |
| No-Load speed | I (low) = 1900/min, II (high) = 2885 /min |
| Blade diameter | 165 mm (6.5″), 180 mm (7.2″),190 mm (7.6″), 250 mm (9.8”) |
| Mounting bore | 2.44” (62mm) |
| Weight | 25 lbs (11.5 kg |

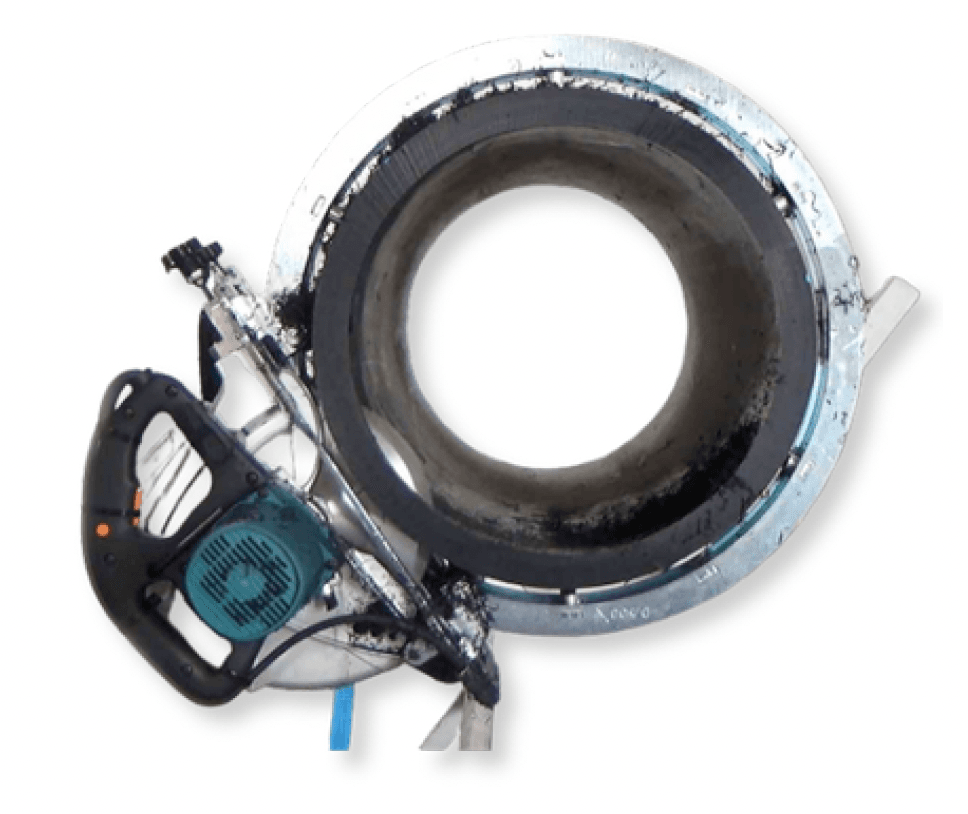

TOPGEAR 630 is the perfect solution to jobsite plastic pipe cutting difficulties, where while safety remains one of the most important points, the cutting time is a key factor for productivity. With the aim of combining these two aspects Ritmo developed an innovative portable pipe saw for jobsite pipe cutting. Whatever the job-site conditions are and wherever the pipe is located, TOPGEAR 630 can be set up for the cutting process and operated in an easy and quick way, ensuring a significative reduction of both preparation and cutting time. Thanks to its clamps which are fastened around the pipe and on which the band-saw moves in a stable and safe way, the cut results accurate and straight even on ovalized pipes.
