Quick-Twist
New Generation Dismantling Joints
Quick-Twist replaces traditional dismantling joints made of steel or cast iron with a faster, lighter and simpler solution. Instead of laboriously screwing adjusting nuts and threaded rods together, Quick-Twist uses a single twist mechanism to set the required length, then fixes like a normal flange.
The result: more than half the usual installation time saved, significantly lighter handling, and a corrosion-resistant all-plastic construction. Equipped with VP flange with an integrated O-ring on the loose side, Quick-Twist delivers the connection and sealing properties of Reinert-Ritz’s best flange designs in one integrated piece. Available for both water and wastewater applications with colour-coded identification.
The fitting and extension piece made simple. Assembled with one twist of the wrist.
Available in 2 configurations:
- Flange to Flange
- Flange to pipe spigot
Explore more here: https://www.quick-twist.de/en/

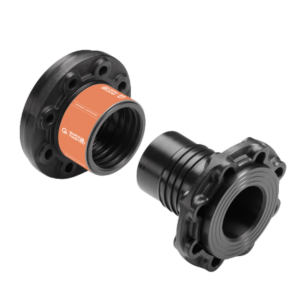

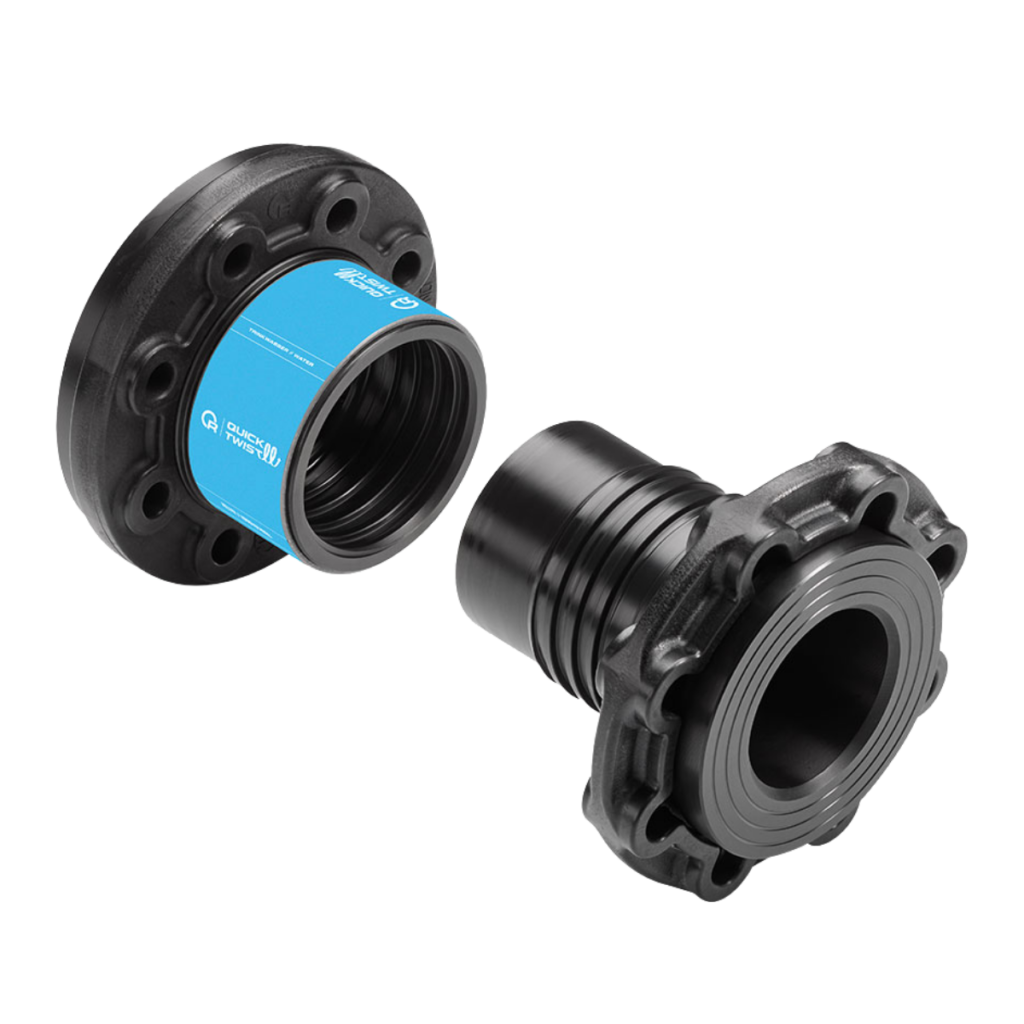

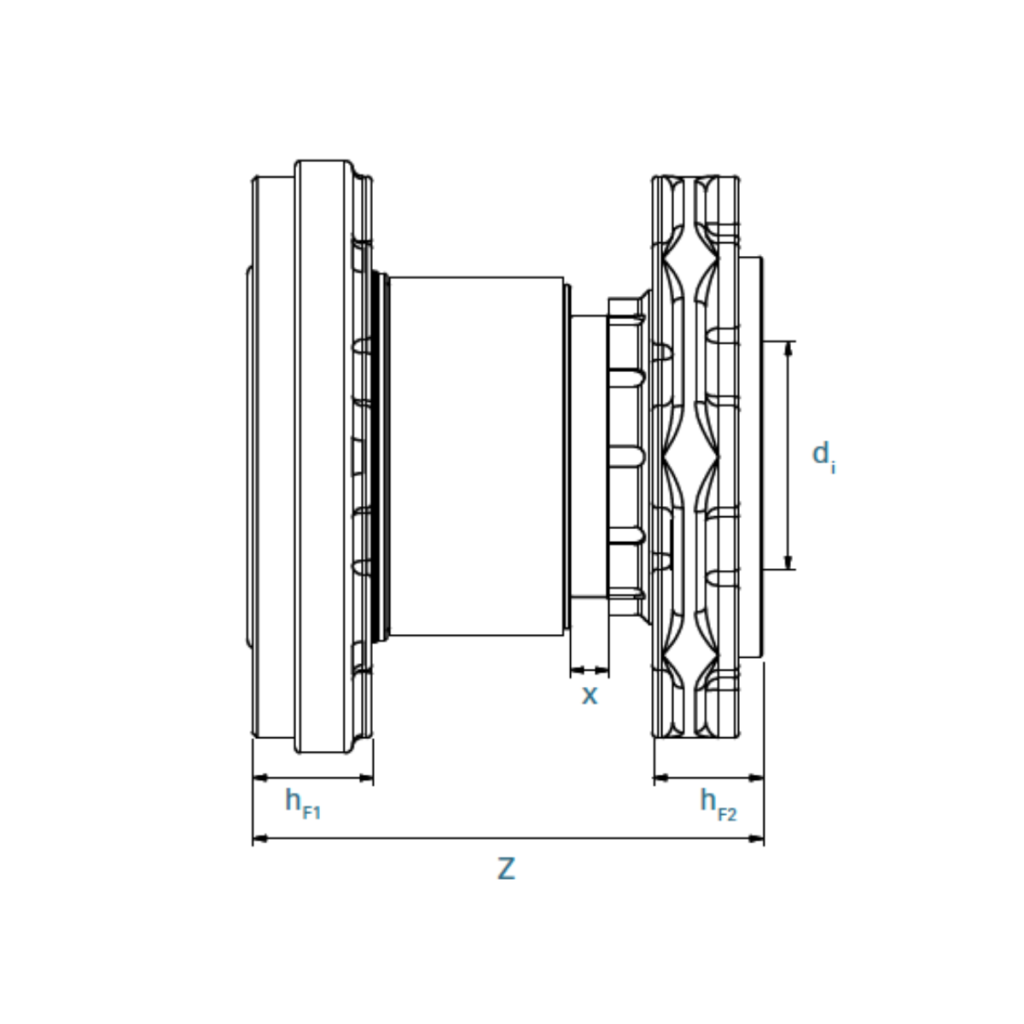

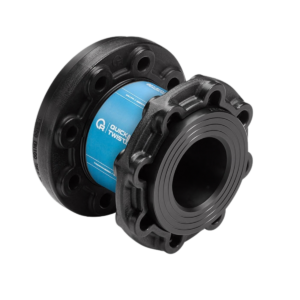

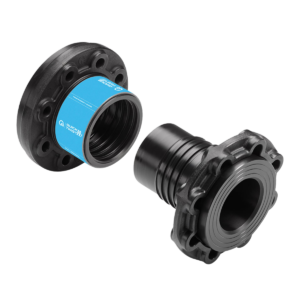

Flange to Flange
Compact connections from one flange material to another

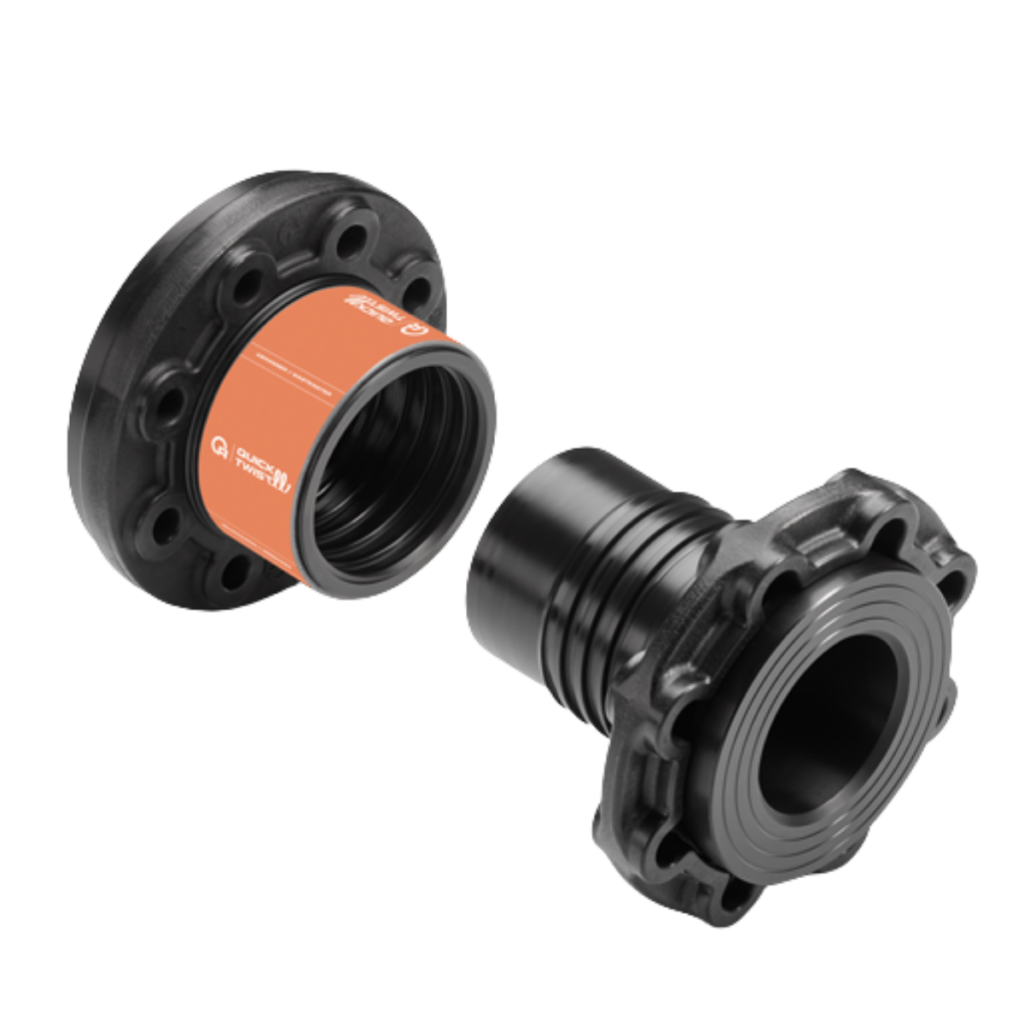

The QUICK-TWIST fitting and extension piece is available with seals for drinking water and wastewater. Both versions are clearly distinctive, marked with different colour bands so that you can identify at a glance for which application the QUICK-TWIST is intended for you. This makes it easy to ensure that all fittings fit together according their purpose securely.

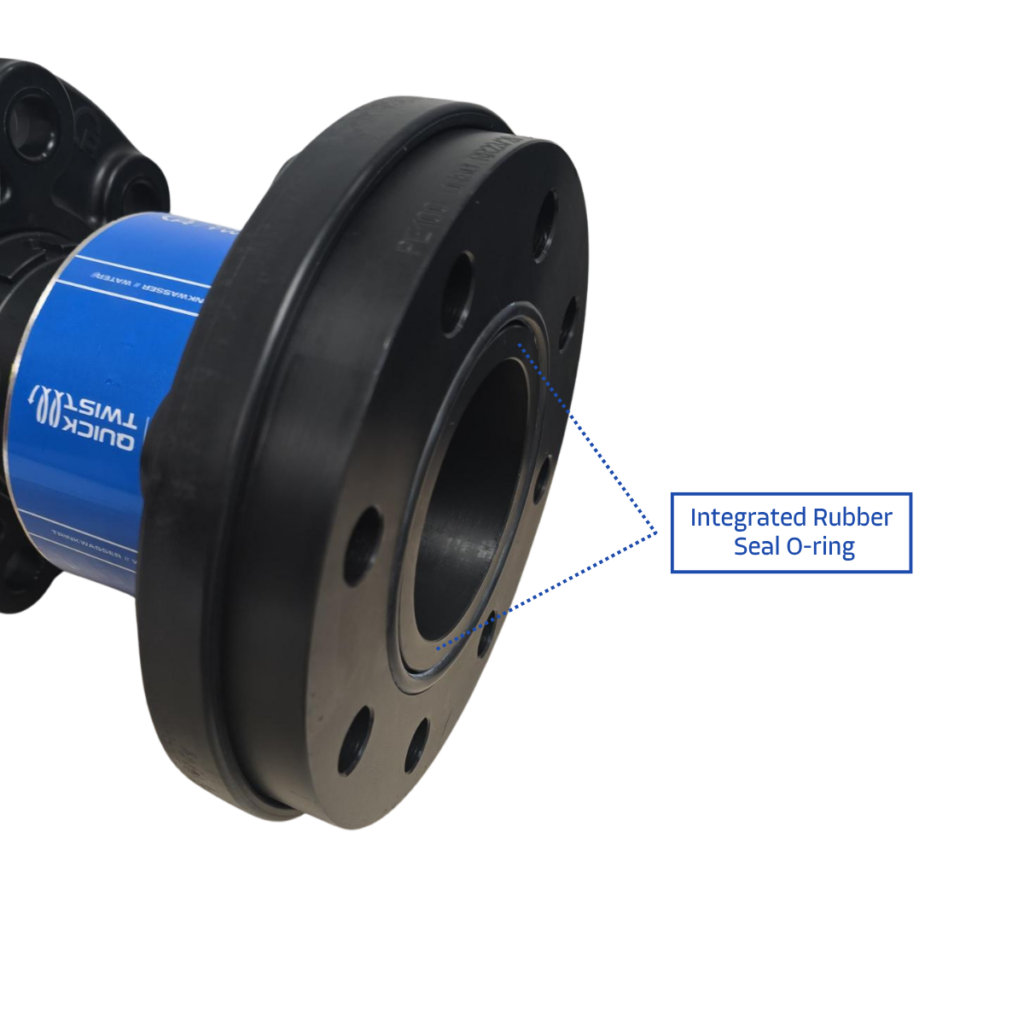

Flanges: VP flange with Stainless Backing Ring one side with integrated rubber seal O-ring to PE Stub Flange with Stainless Steel AS4087 backing ring on other side
- Fully pressure loadable
- Both made of high-strength plastic
- O ring seal is on rotating end to ensure gasket don’t move
- Gasket on other end
Internal Seal: Depending on the application but standard is:
EPDM for water
NBR for wastewater
Equipment: Supplied with a C spanner or you can use your own adjustable C spanner

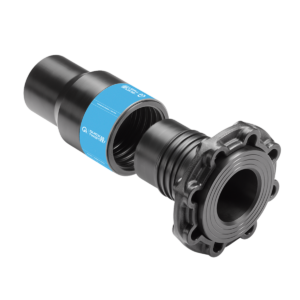

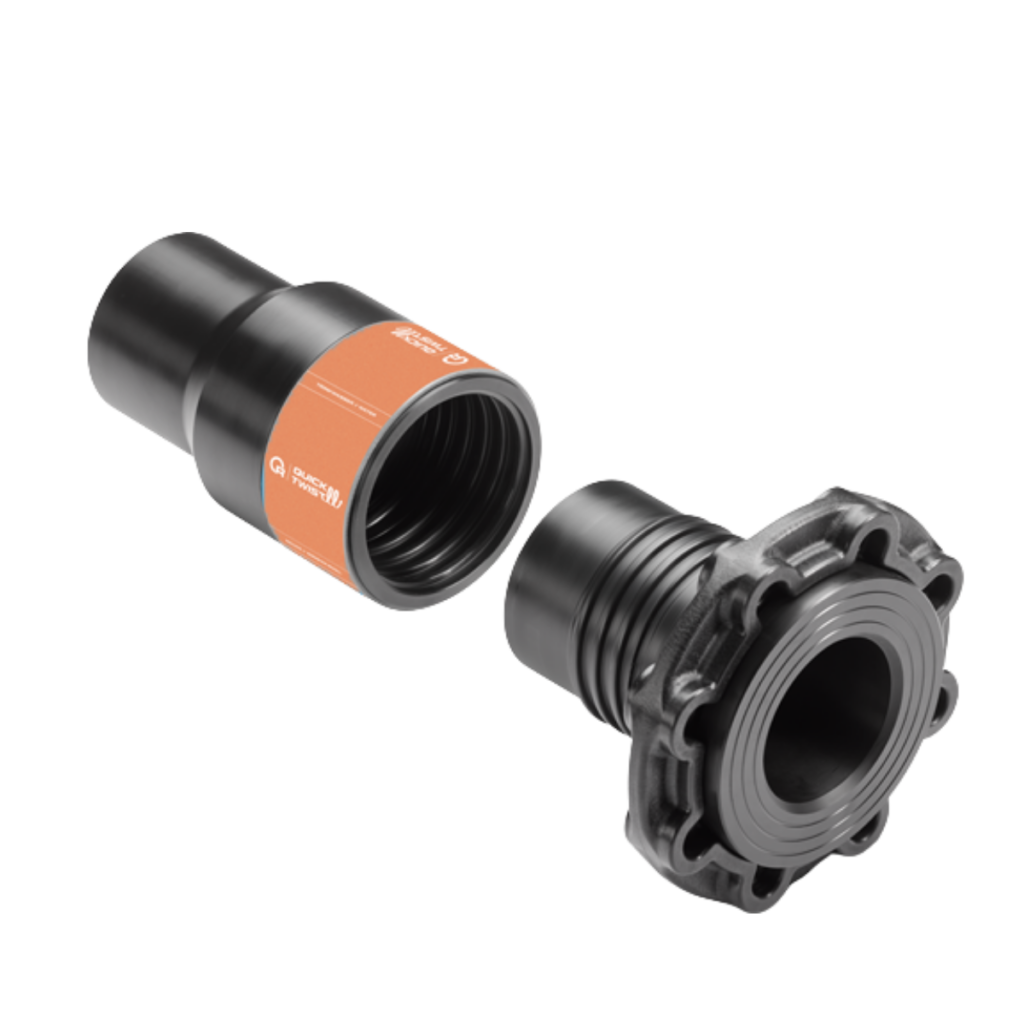

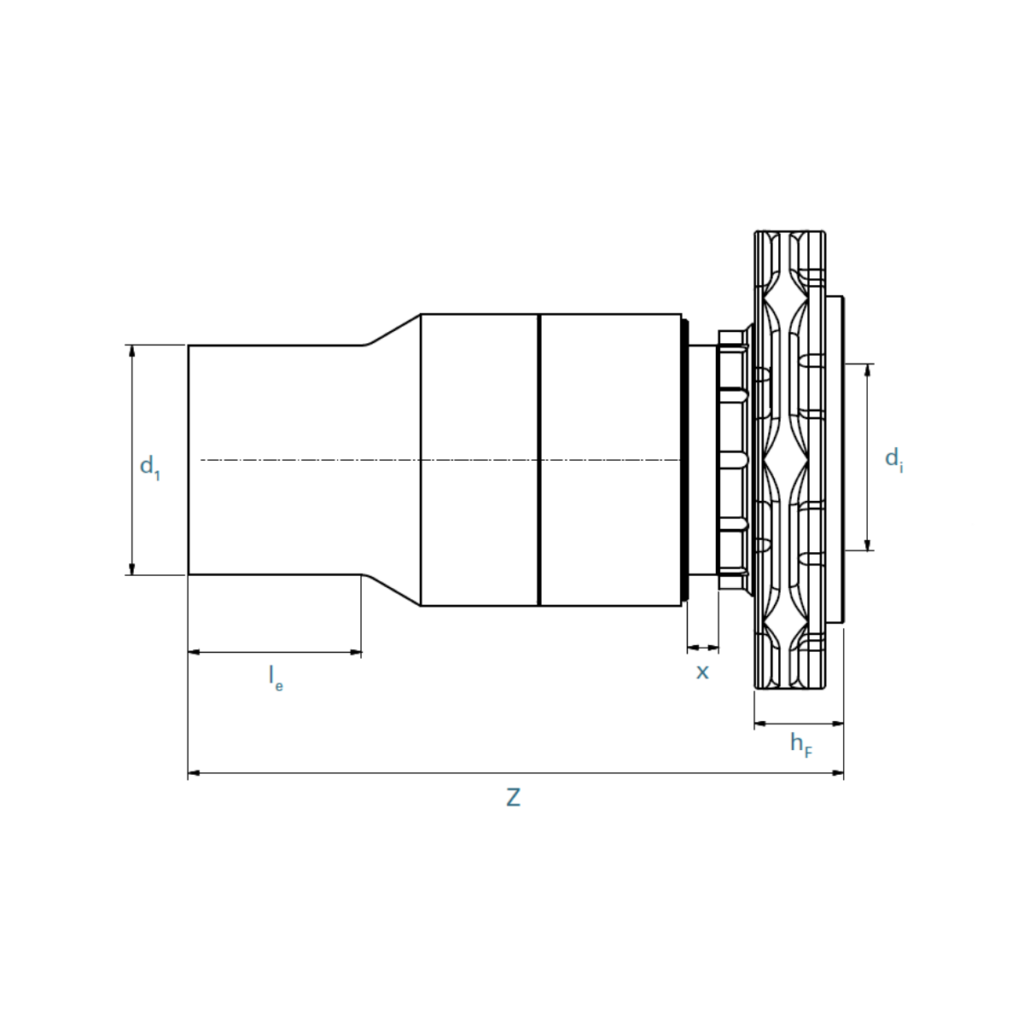

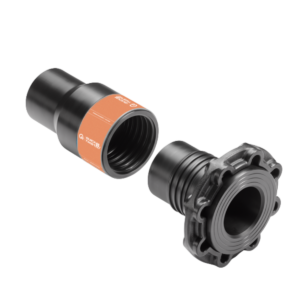

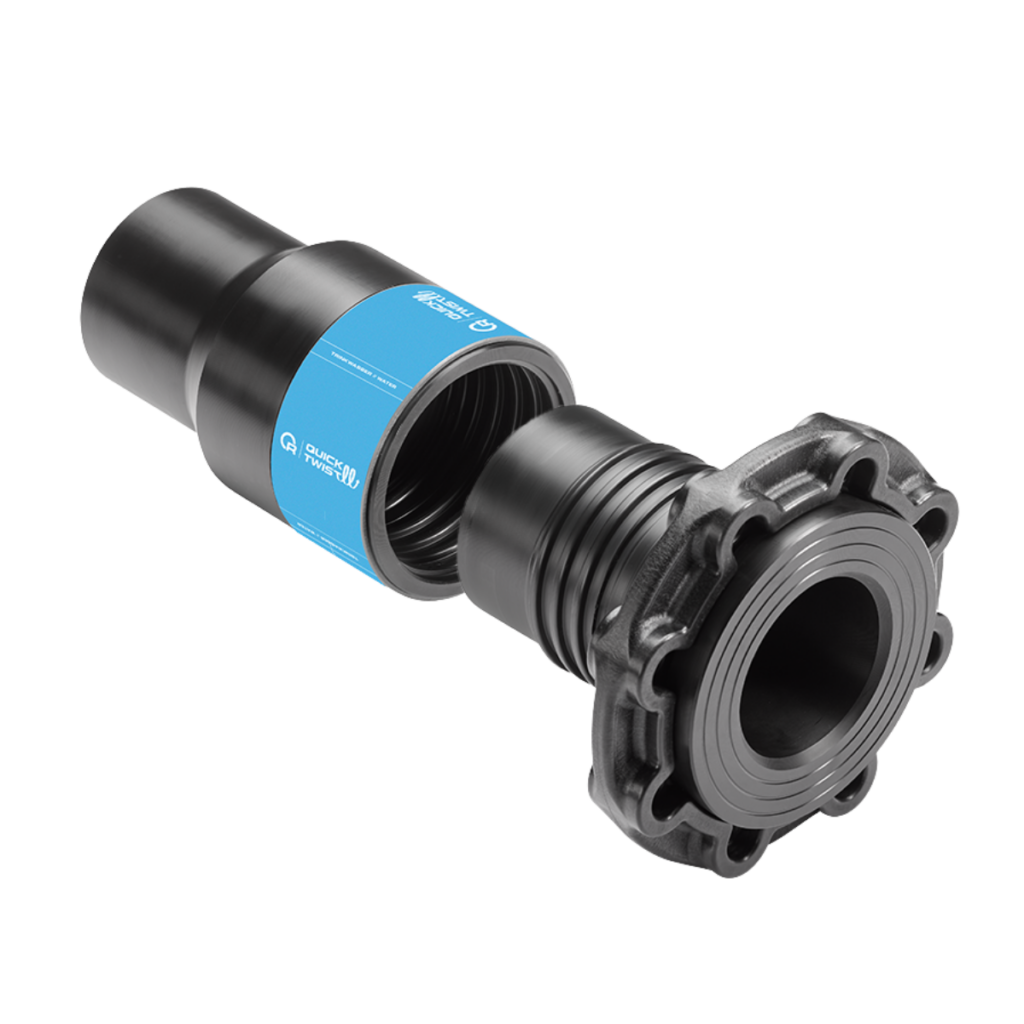

Flange to Spigot End
The Quick-Twist with PE spigot end, a completely new way to increase your productivity.
Flanges: VP flange with Stainless Backing Ring one side with integrated rubber seal O-ring to PE Stub Flange with Stainless Steel AS4087 backing ring on other side
- Fully pressure loadable
- Both made of high-strength plastic
- O ring seal is on rotating end to ensure gasket don’t move
- Gasket on other end
Internal Seal: Depending on the application but standard is:
- EPDM for water
- NBR for wastewater
Equipment: Supplied with a C spanner or you can use your own adjustable C spanner
Key Properties
| Specifications | Details |
| Assembly method | One-twist mechanism (replaces threaded rods and adjusting nuts) |
| Installation time | More than 50% faster than traditional metal dismantling joints |
| Material construction | 100% plastic – corrosion resistant and lightweight |
| Handling | Far easier to move around compared to heavy metal alternatives |
| Fixed-side flange | Stainless Steel AS4087 for outstanding connection and sealing at nominal diameter – gasket required |
| Loose-side flange | VP flange with Stainless Steel AS4087 backing ring and integrated O-Ring seal for maximum reliability |
| Durability | Plastic construction is robust and durable despite light weight |
| Length adjustment | Simple twist mechanism – no screwing required |
| Dismantling | Quick and easy removal using the same twist mechanism |
| Pipe connection options | Spigot end (for electrofusion or butt welding) or VP flange option |
| Application versatility | Identical technical design for water and wastewater applications |
| Application identification | Colour-coded labels for immediate visual identification |
| Sustainability | Corrosion-free plastic reduces long-term maintenance and replacement |
| Cost advantage | Time savings in installation and removal represent tangible economic advantage |
Applications
Quick-Twist solves the practical problem of fitting replacement and removal. Traditional metal dismantling joints with adjusting nuts and threaded rods are slow, heavy, and cumbersome to install and remove.
Use Quick-Twist when you need:
Fast fitting replacement or removal (50% time saving vs. traditional methods)
Lighter-weight handling for easier on-site work
Simple one-twist length adjustment without complex assembly
Corrosion-resistant connections for long-term reliability
Full flange sealing properties
Water or wastewater application flexibility
Economic advantage through reduced installation labour
Simple dismantling for fitting adjustments or replacement
Ease of use by any level of fitter experience
Visible application identification to prevent mix-ups
Quick-Twist is available with spigot ends for electrofusion or butt welding, or with VP flange connection for direct flange-to-flange installation. Choose the configuration that best suits your pipe joining method.
