Rotary Pipe Scrapers

Ritmo Rotary Scrapers – RTC

These professional rotary scrapers, designed and patented by Ritmo, are essential for the preparation of PE pipe and fittings prior to electrofusion welding.

PE pipe scrapers remove the oxidised surface layer caused by UV light. If not removed, the oxidised surface of the pipe or fitting will not bond with the electrofusion fitting thus compromising the joint integrity.

Key benefits of all RTC scrapers include:

Low rotational mass. Reduces the ‘wobble’ effect when peeling pipe ends. Achieve by using a centralised chuck to hold the scraper
Spring loaded blade to maintain a consistent ribbon peel.
Simple to use – Once the chuck is secured in the end of the pipe. The scraping head is threaded on and you can begin peeling.
Robust carry case.

RTC315 – Peels pipe from 75-315mm (58-300mmID)

RTC500 – Peels pipe from 180-500mm (180-485mmID)

RTC710 – Peels pipe from 355-710mm. The main chuck has four extendable arms that clamp the inside of the pipe or fitting.

Standard Composition

– Pipe scraper
– Adapter kit with inserts (except for RTC 710)
– Spare blade
– Handwheel key (for RTC 315)
– Aluminum transport case
– Screwdriver and small cutter

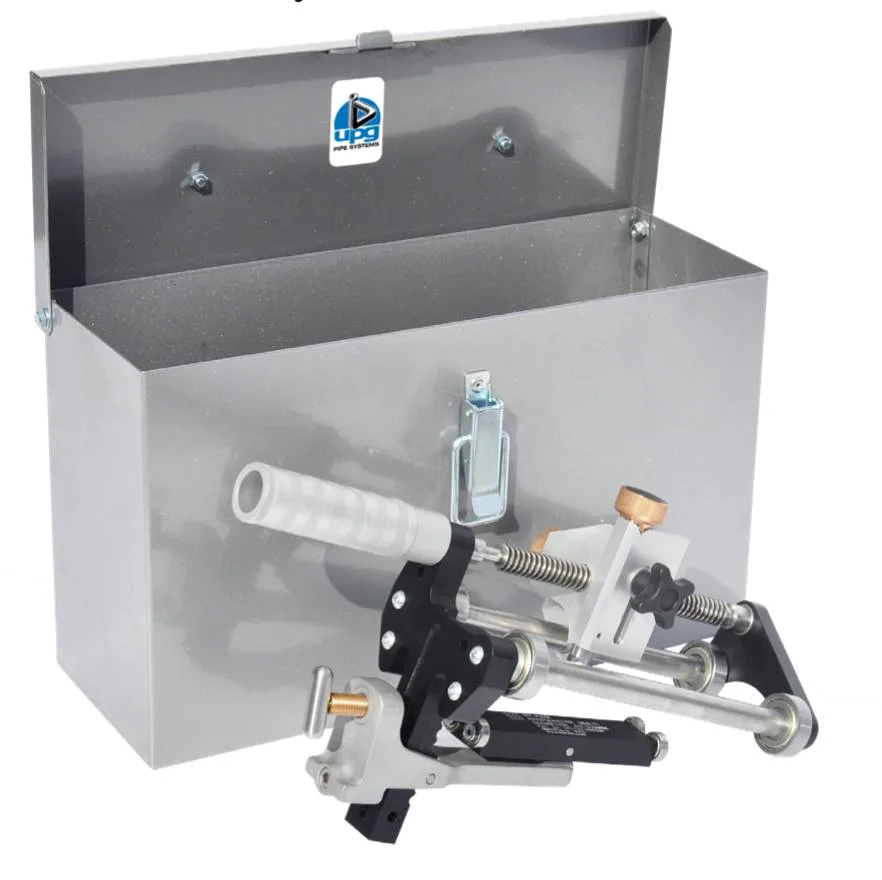

PrepMaster Pipe Scrapers

PrepMaster Multi scrapers incorporate a hardened tungsten carbide blade and give a controlled depth of cut. Available for pipe sizes between 63 and 710mm, each tool with a large working range.

The tool features a replaceable 4 edge tungsten scraping tip and lightweight die-cast aluminum body construction.

It’s easy to use, with a spring loaded scraping tip to accommodate irregular shaped pipe, and has excellent performance characteristics. Comes with a heavy duty carry case to keep your tool in good condition. Made in the UK from quality materials, this is a tool that will work for you on site for many years to come.

UPG also stock most spare parts in NZ for these tools and can service your tool if needed in the future.

Key features

Large pipe range capacity
Optional high quality storage cases
Four sided long-lasting TCT blade
Consistent scrape depth
Lightweight aluminium design
4 sided tungsten scraping tip
Lightweight die-cast aluminum body
Spring loaded tip for irregular shaped pipe
Suitable for all SDR rated pipe

Size Range

Prepmaster Rotary Scraper with Box 63-315mm Prepmaster Rotary Scraper with Box 90-400mm Prepmaster Rotary Scraper with Box 100-500mm Prepmaster Rotary Scraper with Box 250-710mm

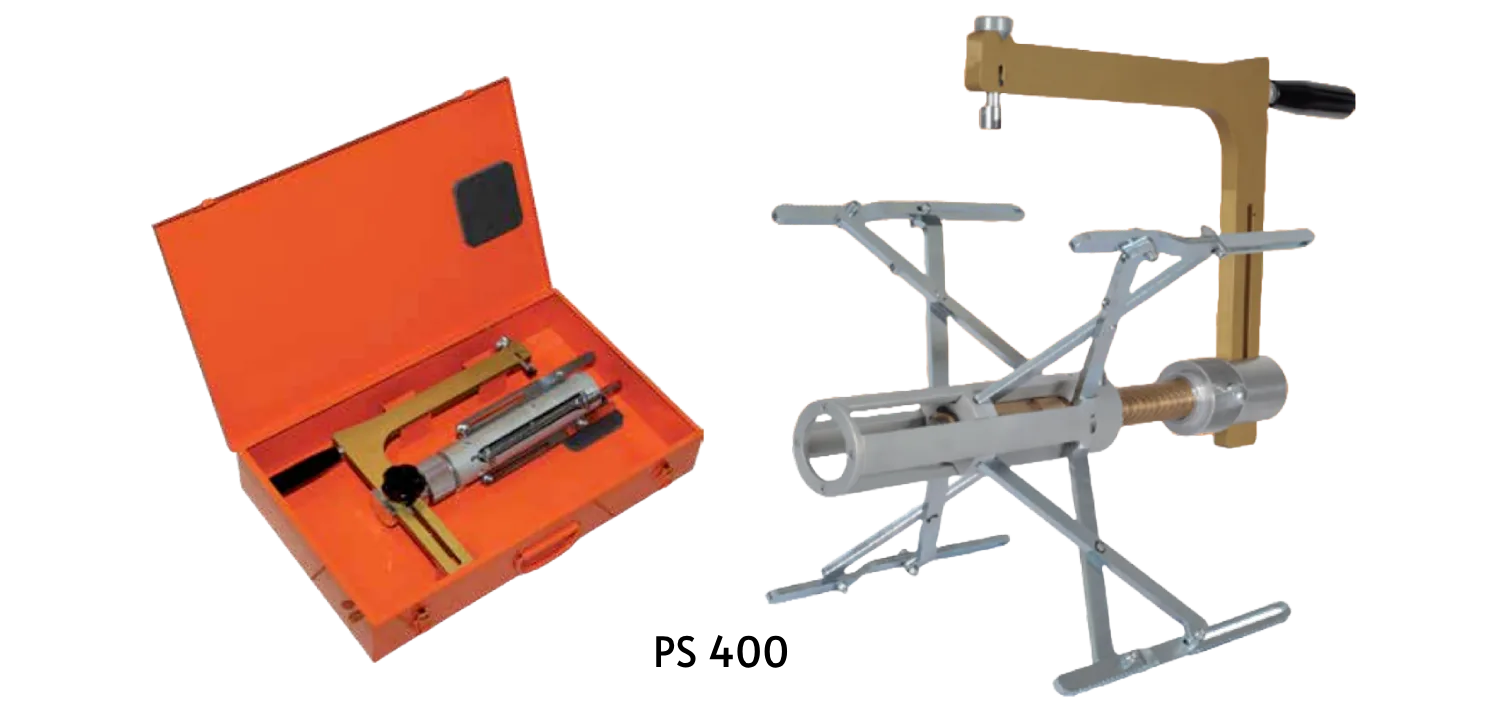

PS Pipe Scrapers

PS Pipe scrapers feature extendable arms to hold the scraper centrally on pipe/fittings.

These tools have an adjustable chuck covering the full working range, and a blade holder orbital arm. The PS series guarantees a constant and regular removal of the oxidised layer. The scrapers blade holder permits the scraping of the entire EF Coupling length, most useful when doing on site repairs.
