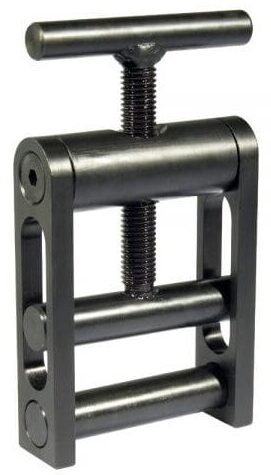

The mini squeeze-off is a very compact tool made from aluminium and steel components. Featuring a durable steel thread and bars to ensure the pipeline is shut off.
40mm Squeeze Off Tool | Code: 9974-1642 |
| Working range | 16mm - 40mm |
| Operation | Manual |
| Dimensions | 110 x 25 x 70mm |
| Weight | 1.2 Kg |
The 63mm squeeze off tool can be used ‘squeeze off’ SDR11-17 PE pipe in all sizes from 20-63mm.
Once the pipe is inserted, the bottom bar is fixed in position by a shackle and the squeezing depth set on the top bar to ensure pipe is not ‘oversqueezed’. The handle is rotated until the bar contacts the stops and the liquid/gas flow is stopped.
This unit is constructed from durable components with a large ‘T’ handle and thread requiring minimal force to compress the pipeline.
The 63-125mm squeeze off tool is used to stop the flow of gas or water through PE pipelines for sizes 63, 75, 90mm in SDR11 and 90, 110, 125mm in SDR17.
Mechanical operation with a large steel T bar lever, these tools are robust and lightweight for use on all sites. Comes with zinc plated durable finish.
Includes stoppers for SDR11 and SDR17 to set according to the pipes diameter to prevent over-squeezing.
125mm Squeeze off tool | Code: 9974-63127 |
Working range | Ø63 - 125 mm / SDR11-17 |
| Approx Dimensions | 340 x 115 x 520 mm |
| Weight | 18 Kg |
The 63-200mm squeeze off tool is used to stop the flow of gas or water through HDPE pipelines for sizes 63-200mm in SDR11 and SDR17 Wall thicknesses.
Operated via a hydraulic pump and lever. Can only be operated in the upright position due to the hydraulic pump action.
Easy to move/transport with two handles and a sturdy steel frame.
Includes stoppers for SDR11 and SDR17 to set according to the pipes diameter to prevent over-squeezing.
200mm Squeeze Off Tool | Code: 9974-6320 |
Working range | 63 - 200 mm / SDR11-17 Seperate stops are supplied to suit SDR11 or SDR17 pipe |
| Dimensions | 476 x 90 x 722 mm |
| Weight | 37 Kg |
